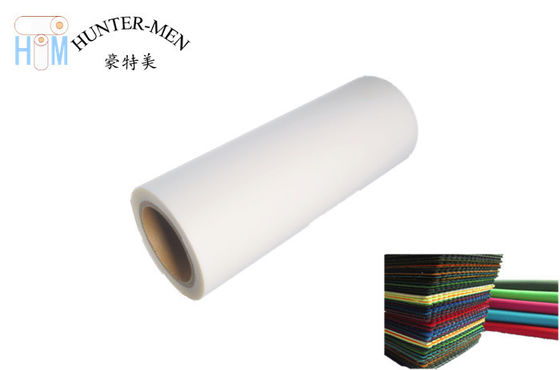

Lower Melt Point Polyurethane TPU Hot Melt Adhesive Film for Textile Fabric
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | Hunter Men |
| Certification | SGS,Reach, RoHS,ISO9001:2015 |
| Model Number | HT08-90 |
| Minimum Order Quantity | 100 Yards |
| Price | Negotiable |
| Packaging Details | 100 Yards/Roll and PE bag package,1 rolls in Carton |
| Delivery Time | 1-15 work days |
| Payment Terms | Western Union, T/T, D/A, D/P,Alibaba，Paypal |
| Supply Ability | 300rolls per day |
Product Details
| Main Raw Material | Polyurethane(TPU) | Color | Milky White |
|---|---|---|---|
| Melt Flow Index | 28g/10min（Condition:ASTMD1238-04） | Melt Point | 65±5℃ |
| Operate Temperature | 90-130℃ | Proportion | 1.18±0.05g/cm³ |
| High Light | 140cm Thermoplastic Polyurethane Film,50mic Thermoplastic Polyurethane Film,140cm TPU Hot Melt Adhesive Film |
||
Product Description
Lower Melt Point PolyurethaneTPU Hot Melt Adhesive Film for Textile Fabric
Model Number:HT08-90
Description:
HT08-90 is a thermoplastic adhesive product , the raw material is ployester, the structure is polyurethane film + release paper,it is suitable for wide range of adherend. It can be repeatedly heated for bonding. This adhesive product possesses excellent washability and chemical additives resistant.
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:
| Color | Milky White | Release Liner | Silicone Glassine Release paper |
| Density | 1.18±0.05g/cm³ | Conventional thickness | 50mic |
| Melt Flow Index |
28g/10min |
Conventional Width | 140cm |
| Hardness (Shore A) | 96±2A | Length | 100yards |
| Melt Point | 65±5℃ | Normal Size /Rolls |
140cm(width)*100yards(Length) |
Recommended Bonding Conditions:
| First Backing Operate | Second Hot Pressure Operate | ||
| Backing Temperature | 90℃-100℃ | Hot Pressure Temperature | 110℃-130℃ |
| Hot Pressing Time | 1-5seconds | Hot Pressure Time | 5-15seconds |
| Pressure | 0.5-1.5KG/CM² | Pressure | 0.5-1.5KG/CM² |
Remarks:The above information and technical support are based on our current knowledgeand experience.They are witout guarantee and legal claim.To obtain the best processing conditions, we suggest customers test the samples before using our products
Hot Melt Adhesive Film's Advantages
1. Clean;
2. Envorentment friendly;
3. High efficiency. In the all process, just need a several seconds.
4. Safety. This product is non-solvent and haven't any hidden trouble in your production.
5. Hot melt adhesive film has better fastness than other glue which could be widely used to laminate many materials;
6. Automatic production can be cometure.
7. Portable and easy operattion
8. Reusable. At the film melting,you can use it again and again.
9. Hot melt adhesive film has good dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as adhesives and sealants;
We support Customization:
| Width Range | 5-1500mm |
| Length Range | 100yards-1000yards per roll or as your demands |
| Thickness Range | 60MIC-300MIC |
We can tailor hot melt film as your business and demands.
How to Use:
Hot melt adhesive film is usually processed by iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot pressure machine.The processing structure have two layers of material, three layers of materials or more layers.
Two Layers :
Three Layers :
Packaging Details:
| Packaging | 1PC/PE FILM, 100yard/roll, 1 rolls/CTN, or it's up on the customer's option |
| Storage Conditions | Stored in dry unopened packaging at room temperature at least 2 years. |
Delivery Detail:
Shipped in 3-15 days after payment
About Us:
|
Shenzhen CIty Hunter-Men Plastics Products CO.,LTD as a professional manufaturer was established in 2013, with rich experience specializing in R&D and producting all kinds of hot melt adhesive products. Owing varied production machines to match custom demands. Mainly Markets are Europe, America, South Asia, South Africa and so on. Our factory has passed ISO9001:2015 quality control certification system. The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film. |
|||
|
|
|
|
|
| Film Casting Machine | Film Coating Machine | Film&Tape Slitting machine | Fully Automatism Number Control Slitter | Fully Automatism Number Control Guillotine |
Quality Control:
|
|
|
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
Melt Point: 70-110℃,
Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
Thickness:0.05mm-1mm,
Width: 5mm-1500mm,
Length:1M-1000M/roll,
Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)
A.Conventional Aperture:1.4mm,1.5mm,1.8mm
B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm
We can tailor hot melt film as your business and demands.
Why Choose Us:
1.We are a professional manufacturer of hot melt adhesive film over 10 years of industry experience.
2.Competitiveness :Have an independent R&D center and technical team,have advanced production equipment, and strict quality control.
3. Our Wish: Provide the highest quality products, provide professional customer service, and delivery quickly at the competitive price for all client.
FAQ:
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
