|Thickness Range(Mic):||50mic-180mic||Width Range(mm):||5cm-160cm|
|Length Per Roll:||100 Yards Or As Your Demands||Melting Point(°C):||80℃|
|Hot Pressing Temperature(°C):||140-160℃||Melt Flow Index (g/10min,160℃):||30±3g/10min; Condition|
100mic PA Thermoplastic Adhesive Film,
100mic PA Thermoplastic Film,
Copolyamide Thermoplastic Adhesive Film
Resistance Washable 60℃ and Dry cleaning CO-Polyamide (PA) Thermolastic Adhesive Film For Nylon Fabrics

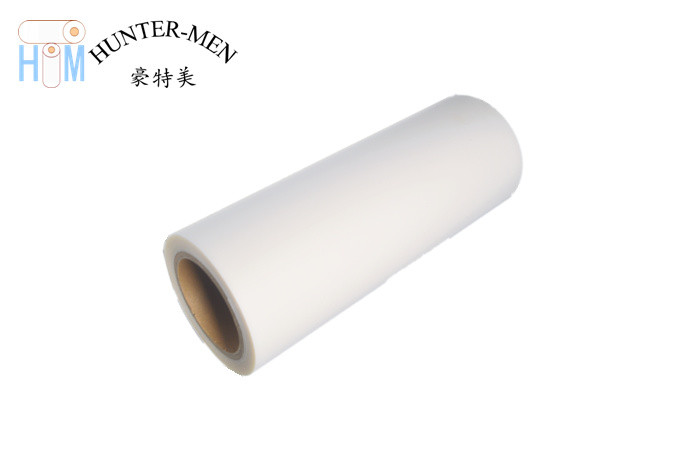

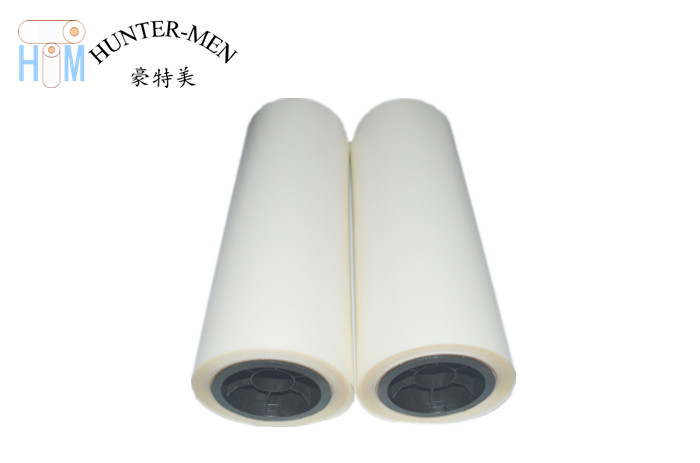

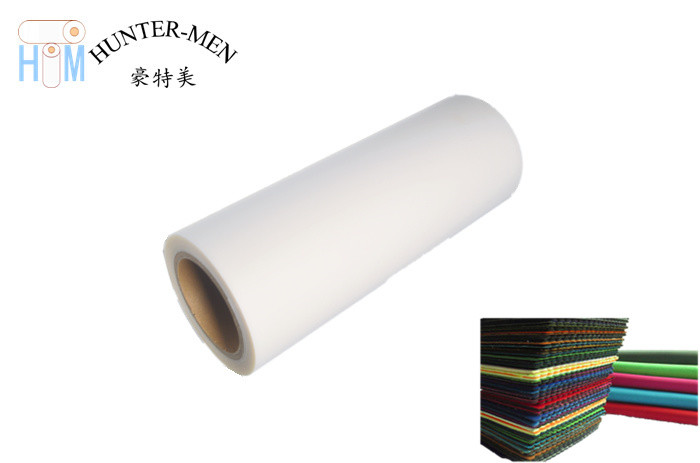

HT05 is a thermoplastic copolyamide hot melt adhesive film product, and it structure is double-layer, the one laye is release paper, the other layer is copolyamide hot melt adhesive film,it can stick to materials after one or more times melt by hot temperature,after hot melting and quickly cold speed feature make it use to various high speed production.it's suitable for wide range of materials,it performs an excellent adhesion for Fabrics, textiles, nylon etc.
Excellet washable resistance,dry cleaning resistance,solvent resistance, high&low temperature resisitance.
|Color||Sky Blue||Release Liner||Glassine release paper|
|Melt Flow Index||
|operating Temperature||140℃-160℃||Length||100yards or as your option.|
|Flow Beginning Point||80℃||Normal||50cm (width)*100yards(Length)|
HOW TO USE
Hot melt adhesive film have 2 layers(release paper +hot melt adhesive film)
1. Put hot melt adhesive film on the bonding material A, and release paper layer is up, hot melt adhesive film layer is down,the sequence: release paper +hot melt adhesive film+material A.
2.Put release paper +hot melt adhesive film+material A in hot pressure machine,and hot pressing on the release paper side
3.After that cooling, peel out the release paper
4.Put material B on the hot melt adhesive film,,the sequence: material A+hot melt adhesive film+material B, then hot pressing again
Remarks:The above information and technical support are based on our current knowledgeand experience.They are witout guarantee and legal claim.To obtain the best processing conditions, we suggest customers test the samples before using our products.
It is often used in the bonding of textiles,leather,foam,paper,metals,and polymers for electrical,mechanical,automotive,furniture and other industury.
PES Adhesive Film
Excellent washing resistance.
PA Adhesive Film
Good resistance to heat,cold,oil,chemicai,No smell no spot,fast curing
TPU Adhesive Film
Good flexibility and mechanical properties,suitable for high speed automatic prodution,safe and environmentally frienbly
Fabric,leather,plastic,metal and glasses
EVA Adhesive Film
Outstanding adhesion,softness,heat mobility,cold resistance
EVA has large cohesion force and low surface tension,thus has thermal adhesion to adhesion to aimost all substrates
PO Adhesive Film
No smell,non-toxic,good resistance to cold and chemicals
|Mainly used for packaging paper,carpet,aluminium-plastic panel|
2. Envorentment friendly;
3. High efficiency. In the all process, just need a several seconds.
4. Safety. This product is non-solvent and haven't any hidden trouble in your production.
5. Hot melt adhesive film has better fastness than other glue which could be widely used to laminate many materials;
6. Automatic production can be cometure.
7. Portable and easy operattion
8. Reusable. At the film melting,you can use it again and again.
9. Hot melt adhesive film has good dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as adhesives and sealants;
1 to 4 rolls /CTN, 1 PE bags/rolls or it's up on your option.
|Storage Conditions||Stored in dry cool place unopened packaging at room temperature and avoiding direct UV.
Why choose us
1. Quality control and stability: Applied with high quality,each product is produced under strict quality control at every manufacturing process from raw materials to final testing, which ensures our products come with perfect performance on appearance and consistency.
2.Reasonable price: We frequently strive to offer better, flexible and win-win price.
3. Fast delivery. We will ship out your order within 1-2 business days after verification of the payment and confirmation of the order.If out of stock,we will inform you in advance.
4. Premium custom service: Fast response within 24hours. Over 10 years of experience in customer service, problem solving, marketing and logistic delivery, Team support from professional sales team.
5. Our aims:High quality, low price,fast delivery and good service.
6. Be faithful, responsible, honest and sincere to our client, keep our promise.
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
A.Melt Point: 70-110℃,
B.Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
F.Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)
B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm
