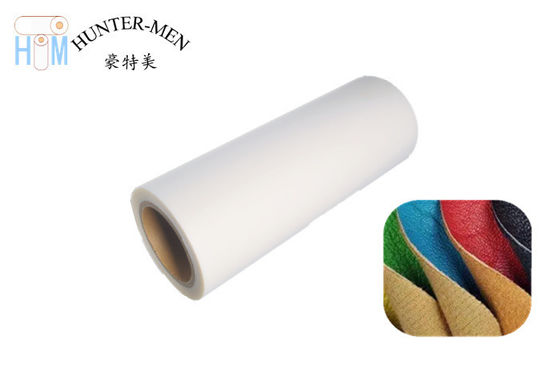

50mic TPU Hot Melt Adhesive Film For Textile Fabric 28g/10 Min
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | Hunter Men |
| Certification | SGS,Reach, RoHS,ISO9001 |
| Model Number | HT02-08 |
| Minimum Order Quantity | 100 Yards |
| Price | Negotiable |
| Packaging Details | 100 Yards/Roll and PE bag package,1 rolls in Carton |
| Delivery Time | 1-15 work days |
| Payment Terms | Western Union, T/T, D/A, D/P,Alibaba，Paypal |
| Supply Ability | 300rolls per day |
Product Details
| Main Raw Material | Polyurethane(TPU) | Color | Milky White |
|---|---|---|---|
| Melt Flow Index | 28g/10min（Condition:ASTMD1238-04） | Melt Point | 85±5℃ |
| Operate Temperature | 120-150℃ | Thickness(mic) | 50mic |
| Width(mm) | 140cm | Length(Yards) | 100 Yards/Roll |
| Proportion | 1.18±0.05g/cm³ | ||
| High Light | Hot Melt Adhesive Film For Textile Fabric,50mic TPU Hot Melt Adhesive Film,28g/10 Min hot melt adhesive sheets |
||
Product Description
Thermoplastic PolyurethaneTPU Hot Melt Adhesive Film for Textile Fabric
Model Number:HT02-08
Description:
HT02-08 is thermoplastic material, suitable for a variety of materials, it can be heat plasticized adhesive repeated. textile, polyester, cotton, blended fabric, TPU, PVC, PC / ABS, and has good resilience, elasticity, heat resistance, cold resistance and water resistance.This adhesive product possesses excellent chemical additives resistant, and it can resist 24hour -20℃ to + 70℃ cyclic test.
Structure: TPU film +Release Paper
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:
| Color | Milky White | Release Liner | Silicone Glassine Release paper |
| Density | 1.18±0.05g/cm³ | Conventional thickness | 50mic |
| Melt Flow Index |
28g/10min |
Conventional Width | 140cm |
| Hardness (Shore A) | 96±2A | Length | 100yards |
| Melt Point | 85±5℃ | Normal Size /Rolls |
140cm(width)*100yards(Length) |
Recommended Bonding Conditions:
| First Backing Operate | Second Hot Pressure Operate | ||
| Backing Temperature | 100℃-130℃ | Hot Pressure Temperature | 120℃-150℃ |
| Hot Pressing Time | 1-5seconds | Hot Pressure Time | 5-15seconds |
| Pressure | 0.5-1.5KG/CM² | Pressure | 0.5-1.5KG/CM² |
Note: Due to the different bonding materials have different heat-shielding performance, the operation parameters in the technical data are only for reference. The specific hot pressing temperature, pressure and time shall be adjusted according to the different bonding materials, operating equipment and process.(Please don’t use steam when you operate by flatiron.)
Applications:
HT02-08 widely applied in TPU and leather lamination,moblie phone case, metals,automobile trims,Ic card sealing, PVC lamination etc.
How to Use:
Hot melt adhesive film is usually processed by iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot pressure machine.The processing structure have two layers of material, three layers of materials or more layers.
Two Layers :
Three Layers :
Packaging Details:
| Packaging | 1PC/PE FILM, 100yard/roll, 1 rolls/CTN, or it's up on the customer's option |
| Storage Conditions | Stored in dry unopened packaging at room temperature at least 2 years. |
Delivery Detail:
Shipped in 3-15 days after payment
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
Melt Point: 70-110℃,
Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
Thickness:0.05mm-1mm,
Width: 5mm-1500mm,
Length:1M-1000M/roll,
Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)
A.Conventional Aperture:1.4mm,1.5mm,1.8mm
B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm
We can tailor hot melt film as your business and demands.
Why Choose Us:
1.We are a professional manufacturer of hot melt adhesive film over 10 years of industry experience.
2.Competitiveness :Have an independent R&D center and technical team,have advanced production equipment, and strict quality control.
3. Our Wish: Provide the highest quality products, provide professional customer service, and delivery quickly at the competitive price for all client.
FAQ:
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
