Place of Origin | China |
---|---|
Brand Name | Hunter Men |
Certification | REACH,ROHS |
Model Number | HT01-200A |
Minimum Order Quantity | 100yards |
Price | Negotiable |
Packaging Details | 2 or 4 rolls /CTN, 1 PE bags/rolls or it's up on your option. |
Delivery Time | 1-7 work days after the payment |
Payment Terms | Western Union, L/C, T/T, D/A, D/P,Alibaba |
Supply Ability | 100000 yards per day |
Melting Point(°C) | 85℃±5℃ | Hot Pressing Temperature(°C) | 100-150℃ |
---|---|---|---|
Main Raw Material | EAA | Brand | Hunter Men |
Film Appearance | Colorless And Transparent | Pressure Time(seconds) | 5-20 Seconds |
Width(mm) | 100cm | Port | Shenzhen |
Washing Resistant Time | 40°C/72H | Feature | Environmental |
Packing | 2 Rolls /CTN | Type | PO Hot Melt Adhesive Film |
High Light | EAA Hot Melt Adhesive Film,ROHS Hot Melt Adhesive Film,ROHS thermal adhesive film |

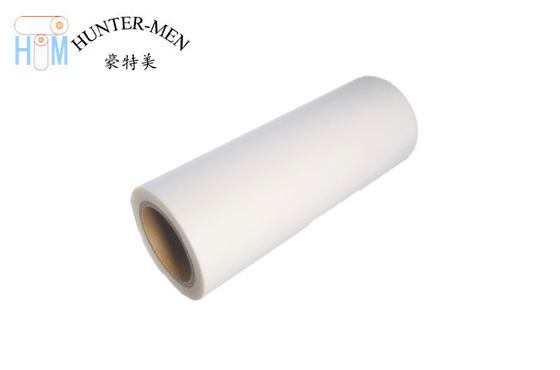

Melt Point 85℃ Transparent EAA Hot Melt Adhesive Film For Fabrics Lamination
Description:
EAA Hot Melt Adhesive Film is a thermoplastic adhesive product , suitable for wide range of adherend . It can be repeatedly heated for bonding, and the melt point is 85℃,It performs an excellent adhesion for fabrics, textiles, cotton etc. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
Physical Characteristics:
Color | Transparent | Release Liner | release paper |
Density | 0.9±0.02g/cm³ | Conventional thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
Melt Flow Index |
200±20g/10min ASTMD1238-04 |
Conventional Width | 100cm |
operating Temperature | 120℃-160℃ | Length | 100yards/100meters or it's up on your option |
Flow Beginning Point | 85℃±5℃ | Normal Products Specification | 100cm (width)*100yards(Length) /roll |
Applications:
Development direction and application of HT01-200A is for adhesion in garments accessories, footwear, handbags, luggage, embroidery, hot fix, iron logo and crafts .
PO(EAA) Hot Melt Adhesive Film | |||
Type | HT01 | HT01-70A | HT01-200A |
Color | Transparent | Transparent | Transparent |
Melt Point(℃) | 110 | 100 | 85 |
Melt Index | 40g/10min 190(℃)2.16kg | 88g/10min 190(℃)2.16kg | 300g/10min 190(℃)2.16kg |
Hardening Time(S) | 3-5 | 3-5 | 3-8 |
Appearance | Transparent Film + Release Paper | ||
Operate Temperature(℃) | 160 - 180 | 150 - 170 | 140 - 160 |
Adhesive Strengh(N)1c㎡ | >50 | >50 | >50 |
Washable | |||
40(℃) | *** | *** | *** |
60(℃) | ** | *** | ** |
80(℃) | *** | *** | No |
Feature | It has high cohesion, seasons resistance, heat resistance, freezing resistance,hydrolytic resistance, Attack resistance and Anti-Aging Performance. | widely adhesive range,lower work temperature, good transparent,soften | |
Nomal Adhesive Materials | aluminums,leathers,fabrics,timbers etc. | metals,plastics,fabrics,leathers, timbers etc | |
Application | precise instruments,electronics,aviations,automobiles,telecommunications,packs,bags,clothings,shoes,furnitures etc. | ||
Note: a. Nomal thickness are 0.05mm,0.08mm,0.10mm,0.12mm,0.15mm,0.18mm,0.20mm and other thickness can be produce accordding to your demands,if you want to get more information about us,please call us. b. Nomal width are 48cm,50cm,97cm,100cm,110cm,140cm and other width can be produce accordding to your demands,and according your demands cutting other width,if you want to get more information about us,please call us. c. Glassine release paper is our nomal bottom material,we can change the bottom materials accordding customer's demands and work condittion.And some product we are able to produce without bottom materials. d. We choose 0.1mm thickness film to bonding fabric material by flat-plate pressing machine to heating pressing, then we can get adhesive strengh data. Addition to this, different bonding materials and different work way, the data will different. e. Operation condition can be adjusted,according differnt machine, different bonding materials, different film thickness or different other factor and so on. f. Nomal stickiness material is our successful cases,but different materials and different surfact preparation, maybe the film will stick materials not very well. If your material is very special, please cnatact us. (Note:***very good,**good,*general,NO not applicable) |
Other Hot Melt Adhesive Film For Fabrics Lamination | ||||
Type | HT03 | HT01-2000 | HT01 | HT05 |
Color | Milky White | Transparent | Transparent | Transparent |
Bottom Materials | Single Silicon Glassine Release Paper | |||
Melt Point(℃) | 108 | 85 | 100 | 100 |
Pressing Temperature(℃) | 120-160 | 110-150 | 120-170 | 120-160 |
Adhesive Strengh(N/1c㎡) | >80 | >80 | >70 | >80 |
Normal Thickness | 0.06mm,0.08mm,0.1mm, 0.12mm,0.15mm | |||
Normal Specification (width*length) | 50cm*100YDS | 48cm*100YDS | 48cm*100YDS | 50cm*100YDS |
Dry Cleaning | * | NO | NO | *** |
Washable | ||||
40(℃) | *** | *** | *** | *** |
60(℃) | ** | * | NO | ** |
80(℃) | * | NO | NO | * |
Hot Melt Adhesive Film's Advantages
1. Clean;
2. Envorentment friendly;
3. High efficiency. In the all process, just need a several seconds.
4. Safety. This product is non-solvent and haven't any hidden trouble in your production.
5. Hot melt adhesive film has better fastness than other glue which could be widely used to laminate many materials;
6. Automatic production can be cometure.
7. Portable and easy operattion
8. Reusable. At the film melting,you can use it again and again.
9. Hot melt adhesive film has good dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as adhesives and sealants;
Why Choose US:
1.Domestic and Foreign Engineers Cooperate Development Products
“Talent is the First Productive.”In our View, continue to research and develop new products to meet customers adhesion demands, is the basis of the enterprise long-term survival and development. We are cooperate with domestic and foreign engineers to develop new products, we are pay attention to product’s application effect, everything just for building “adhesion”our long-term cooperation, common development the best hot melt adhesive film.
2.Professional Laboratory for Research and Development and Quantify the Technical Standards
Along with the rapid development of hot melt adhesive film industry, hot melt adhesive film is widely used in all kinds of industry, so that customers demands the product’s function more professional, demands the product’s quality more stringent. When hot melt adhesive film is produced ,in order to do this, laboratory will play a important role in R & D, quality checks, production monitoring etc. It is an reliable guarantee of qualified quality. The Laboratory’s test provided strong data for the product’s R & D and quality, also is us become your“the best cooperation partner “ guarantee.
3.According to Customer Demands,One by One Put Out Solutions.
Our engineers will under your bonding materials performance, work equipment, work environment, usage condition or others related factors to adjust formula, one by one make out solutions to you. Your troubles are our challenges, also is our to go forward power .
4.Stringent Requirement Quality
We believe that the good quality product come from good raw material and good technical formula, stable quality come from exact systematic management. We are always adhere to use international brands raw material(such as DOW, DUPONT,HUNTERSMAN,ARKEMA etc. ),stick to systematic data management, rely to good quality products, excellent service after the sale, won the customers trust.
5.Compliance with International Environmental Requirements
Environmental not only is customers require, but also is us social responsibility. Our products compliance with international environmental requirements, such as ROHS, REACH and SGS etc.
6.Powerful Productivity
We has a number of strong produce lines, professional R&D team, complete quality test and management system, we are a professional hot melt adhesive film manufacturer in researching,developing, production, and sales. Welcome you inquiry or request samples.
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
1. Q: How to pack the product?
A: Our goods are packed by cartons, usually 2 or 4 rolls per carton, and 1 roll per PE bags, 25 cartons per pallet, pallet side with stretch film , or we are able to packed as your demands.
2. Q: How many rolls can be full fitted into one container, such as 20FT, 40FT?
A: Due to the goods has many specifications, so the package is different, we need confirm which products is you want, then we will calculate for you accordingly.
3. Q: How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, but different materials hot melt adhesive film have different performances and different usages, we need understand your demands, and then offer fit hot melt adhesive film for you.
4. Q: Do you accept OEM/ODM?
A: Yes, we do. By the way, we have a technical team, they have rich experience, able to help you R&D new products. So if you need bonding some special materials, please don’t hesitated to contact us.
5. Q: Do you provide free sample?How many days it will spend?
A: Yes, we provide free sample, but you need to pay the courier charge. And we will arrange the samples for you 1 to 3 workdays and it will take 3 to 7days on the transportation.
6. Q: What’s your delivery time?
A: We are factory, so we can efficiently control the production time. But we will produce well all of goods for you ASAP when we received your deposit, usually is 5 to 15 workdays.
7. Q: How to test the goods quality?
A: Firstly, before we received your order, you must have test our sample, then we will arrange produce according you confirmed sample.
Secondly, before shipment, we will send the production sample to you or if you convenience, you can watch the goods in our factory.
Thirdly, when you watched the sample, you are able to use same way to test the production sample.
8. Q: What’s your production capacity?
A: At present, our production capacity is 20,000 YDS per days. However, we are planning to open a new factory and add more production lines.
9. Q: What’s your payment term?
A: We accept T/T, L/C, Western Union, Paypal, Escrow, or customized if it is acceptable.
10. Q: How do you transport the product?
A: If you are not urgent, we usually transport by ship as it is the cheapest way. But for the West Asia area, we deliver by train as there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way. Of course if you have better idea about transport, we will consider.
If you have any other questions, please tell us soon, and we will try our best to offer our better service and products for you.
