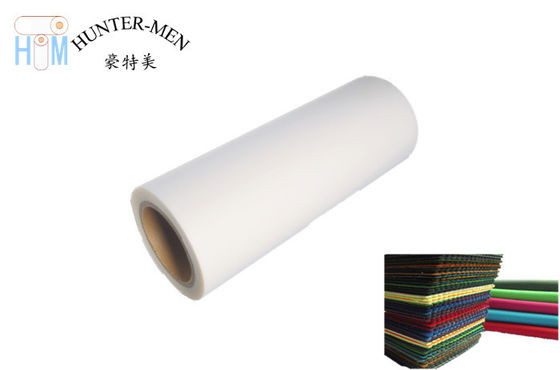

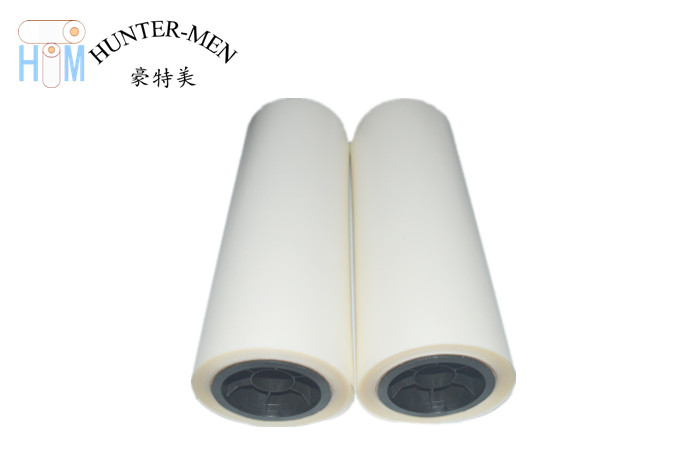

White PES Hot Melt Glue Film 50cm 100cm Width Eco Friendly
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | Hunter Men |
| Certification | SGS,Reach, RoHS,ISO9001 |
| Model Number | HT03 |
| Minimum Order Quantity | 100 Yards |
| Price | Negotiable |
| Packaging Details | 100 Yards/Roll and PE bag package,2 rolls in Carton |
| Delivery Time | 1-15 work days |
| Payment Terms | Western Union, T/T, D/A, D/P,Alibaba，Paypal |
| Supply Ability | 300rolls per day |
Product Details
| Main Raw Material | Polyester | Color | White |
|---|---|---|---|
| Melt Flow Index | 32±5g/10min（Condition:ASTMD1238-04） | Melt Range | 108±5℃ |
| Operate Temperature | 140-160℃ | Thickness(mic) | 100mic |
| Width(mm) | 150cm,100cm,50cm | Length(Yards) | 100 Yards/Roll |
| Proportion | 1.18±0.05g/cm³ | Washable | 60°C/72H |
| Highlight | 50cm PES Hot Melt Glue Film,Hot Melt Glue Film 50cm Width,100cm Width hot glue film |
||
Product Description
Resistance washing 60℃ PES Hot Melt Adhesive Film for Textile Fabric Lamination
Model Number:HT03
Description:
HT03 is environmental friendly thermoplastic material, suitable for a variety of materials, it can be heat plasticized adhesive repeated. This adhesive product possesses excellent chemical additives resistant, and resistance 60℃ washing.
Structure: Polyester film +Release Paper
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:
| Color | White | Release Liner | Silicone Release paper |
| Density | 1.18±0.05g/cm³ | Conventional thickness | 100mic |
|
Melt Flow Index (Condition:ASTMD1238-04) |
32±5g/10min |
Conventional Width | 150cm,100cm,50cm |
| Washable | 60℃/72H | Length | 100yards |
| Melt Point | 108±5℃ | Normal Size /Rolls |
100cm(width)*100yards(Length) 50cm(width)*100yards(Length) |
Recommended Bonding Conditions:
| First Backing Operate | Second Hot Pressure Operate | ||
| Backing Temperature | 100℃-130℃ | Hot Pressure Temperature | 140℃-160℃ |
| Hot Pressing Time | 1-5seconds | Hot Pressure Time | 5-15seconds |
| Pressure | 0.5-1.5KG/CM² | Pressure | 0.5-1.5KG/CM² |
Remarks:The above information and technical support are based on our current knowledgeand experience.They are witout guarantee and legal claim.To obtain the best processing conditions, we suggest customers test the samples before using our products.
Applications:
HT03 have good stickness for a variety of fabrics, textile (exclude laica,jersey,diving etc.),leather,pvc,pet,aluminum foils,foams and so on. So it widely applied in high-grade fabrics lamination,embroidery patches and badges,garment labels,top fly of outdoor jacked,car peak,mesh fabric lanimation for sport shoes,reflective materials, car mats, car seats,automobile trims,conductive cloth,conductive foam,polishing wheel,craft,heat and sound insulation materials,pvc or pe materials lanimation etc.
How to Use:
Hot melt adhesive film is usually processed by iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot pressure machine.The processing structure have two layers of material, three layers of materials or more layers.
Two Layers :
Three Layers :
Hot Melt Adhesive Film's Advantages:
1. Clean;
2. Envorentment friendly;
3. High efficiency. In the all process, just need a several seconds.
4. Safety. This product is non-solvent and haven't any hidden trouble in your production.
5. Hot melt adhesive film has better fastness than other glue which could be widely used to laminate many materials;
6. Automatic production can be cometure.
7. Portable and easy operattion
8. Reusable. At the film melting,you can use it again and again.
9. Hot melt adhesive film has good dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as adhesives and sealants;
3. High efficiency. In the all process, just need a several seconds.
4. Safety. This product is non-solvent and haven't any hidden trouble in your production.
5. Hot melt adhesive film has better fastness than other glue which could be widely used to laminate many materials;
6. Automatic production can be cometure.
7. Portable and easy operattion
8. Reusable. At the film melting,you can use it again and again.
9. Hot melt adhesive film has good dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as adhesives and sealants;
Packaging Details:
| Packaging | 1PC/PE FILM, 100yard/roll, 1 rolls/CTN, or it's up on the customer's option |
| Storage Conditions | Stored in dry cool place unopened packaging at room temperature and avoiding direct UV. |
Delivery Detail:
Shipped in 3-15 days after payment
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
Melt Point: 70-110℃,
Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
Thickness:0.05mm-1mm,
Width: 5mm-1500mm,
Length:1M-1000M/roll,
Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)
A.Conventional Aperture:1.4mm,1.5mm,1.8mm
B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm
We can tailor hot melt film as your business and demands.
Why Choose Us:
1.We are a professional manufacturer of hot melt adhesive film over 10 years of industry experience.
2.Competitiveness :Have an independent R&D center and technical team,have advanced production equipment, and strict quality control.
3. Our Wish: Provide the highest quality products, provide professional customer service, and delivery quickly at the competitive price for all client.
FAQ:
1 : Are you factory or only company ?
We are a factory producing hot melt adhesive film and other related new materials. The factory has many highly automated production lines and experienced and skilled workers, with a daily output of up to 10 million square meters, we are also the agent manufacturers of many other enterprises.
2 : Why we can choose you ?
1) strong production line: We have professional factories and professional quality inspection and management systems to ensure timely delivery of products required by enterprises according to quality and quantity.
2) customized professional services: independent research and development capabilities and professional research and development teams enable us to quickly develop and professionally provide the products you want according to your needs.
3) one-stop service from top to bottom: We are an enterprise integrating independent research and development, production and sales, with mature technology research and development capabilities, skilled technical workers, excellent sales team and pre-sales and after-sales service system can solve all your needs and make you worry-free.
3 : How about the shipping cost ?
If your goods is not large , we can send goods to you via express , such as FEDEX,DHL,EMS,TNT , etc If your goods is large , we will send to you via sea or air , we can quote the price base on FOB, CIF & CNF as you like , then you can choose whether use our forwarder or yours.
4 : How about the price ? Can you make it cheaper ?
The price depends on the item your demand ( Shape,Size,Quantity)Final quotation accoring to receving full description of the item you want.
5 : How about the sample time ? What is the payment ?
Sample time: 3-10 days after e-proof confirmed and your payment received.
T/T , 30 % deposit, and the balance against copy BL or before the shipment Also we accept the PAYPAL, westunion, etc.
