Place of Origin | Shenzhen |
---|---|
Brand Name | Hunter Men |
Certification | SGS,Reach, RoHS,ISO9001 |
Model Number | HT07-60L |
Minimum Order Quantity | 100 Yards |
Price | Negotiable |
Packaging Details | 100 Yards/Roll and PE bag package,1 rolls in Carton |
Delivery Time | 1-15 work days |
Payment Terms | Western Union, T/T, D/A, D/P,Alibaba,Paypal |
Supply Ability | 300rolls per day |
Main Raw Material | Polyurethane(TPU) | Color | Transparent |
---|---|---|---|
Melt Flow Index | 18±8g/10min(Condition:ASTMD1238-04) | Melt Point | 95℃ |
Operate Temperature | 130-160℃ | Thickness(mic) | 30mic |
Width(mm) | 150cm | Length(Yards) | 100 Yards/Roll |
Proportion | 1.18±0.05g/cm³ | ||
Highlight | 30g/M2 Hot Melt Adhesive Film,Polyurethan Hot Melt Adhesive Film,30g/M2 polyurethane film adhesive |

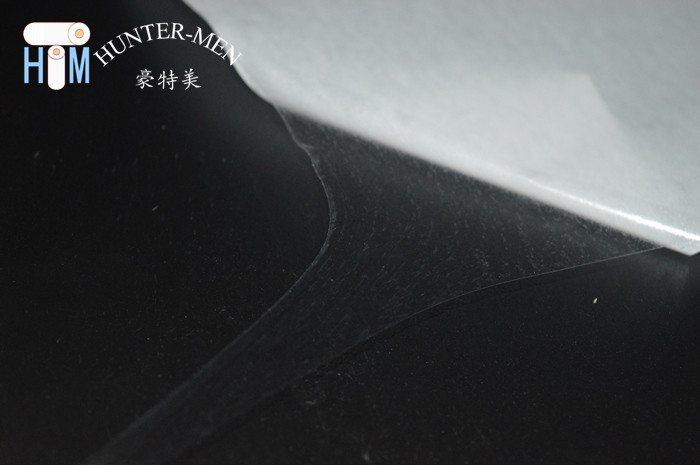

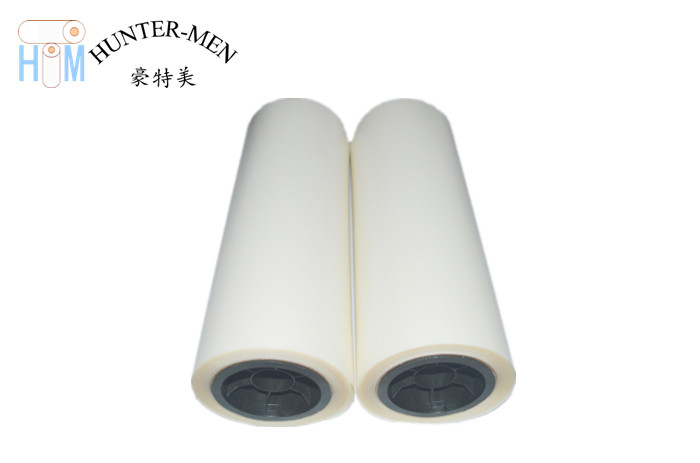

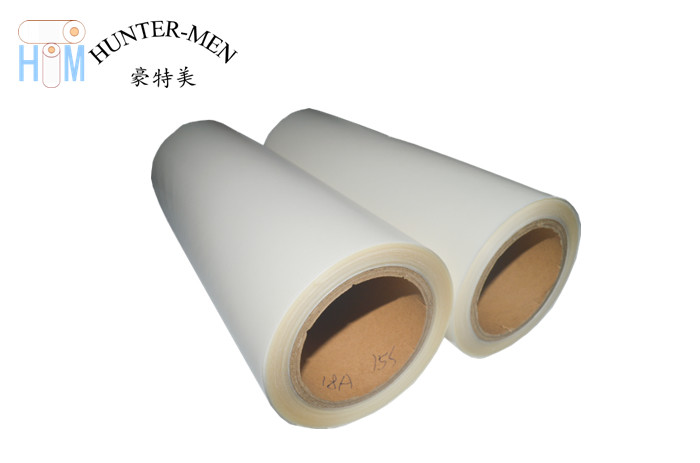

30g/㎡ Ultrathin High Viscosity Low Tempareture Hot Melt Adhesive Film For Carbon Fiber Fabrics Lamination
Model Number:HT07-60L
Description:
HT07-60L is thermoplastic material, suitable for a variety of materials, it can be heat plasticized adhesive repeated. textile, polyester, cotton, blended fabric, carbon fiber fabrics,TPU, PVC, PC / ABS, and has good resilience, elasticity, heat resistance, cold resistance and water resistance.This adhesive product possesses excellent chemical additives resistant.
Structure: TPU film +Release Paper
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:
Color | Transparet | Release Liner | Silicone Release paper |
Density | 1.18±0.05g/cm³ | Conventional thickness | 30mic |
Melt Flow Index |
18±10g/10min |
Conventional Width | 150cm |
Hardness (Shore A) | 73±2A | Length | 100yards |
Melt Point | 95℃ | Normal Size /Rolls |
150cm(width)*100yards(Length) |
Remarks:The above information and technical support are based on our current knowledgeand experience.They are witout guarantee and legal claim.To obtain the best processing conditions, we suggest customers test the samples before using our products
Applications:
HT07-60L used to Carbon fiber composites, and the Car fiber fabrics can be used to including carbon fiber profiled parts, carbon fiber pipe, carbon fiber fuselage, high strength carbon fiber wing, carbon fiber plate, etc.
How to Use:
Hot melt adhesive film is usually processed by iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot pressure machine.The processing structure have two layers of material, three layers of materials or more layers.
Two Layers :
Three Layers :
May You Interesting:
TPU Hot Melt Adhesive Film | ||||
Type | HT07-66 | HT07-58 | HT08-90 | HT02-08 |
Color | transparent | transparent | milky translucent | milky translucent |
Bottom Materials | Double Silicon Glassine Release Paper | Single Silicon Glassine Release Paper | ||
Melt Point(℃) | 115 | 95 | 60 | 90 |
Melt Index | 8g/10min 190(℃)2.16kg | 30g/10min 190(℃)2.16kg | 40g/10min 190(℃)2.16kg | 20g/10min 190(℃)2.16kg |
Shore Hardness(A) | 81 | 76 | 97 | 97 |
Thickness(mm) | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 |
Width(mm) | 7-1500 | 7-1500 | 7-1500 | 7-1500 |
Length(yd) | 100-300 | 100-300 | 100-300 | 100-300 |
Pressing Time(S) | 5-15 | 5-15 | 5-12 | 5-12 |
Pressing Temperature(℃) | 120-180 | 120-160 | 80-140 | 80-140 |
Adhesive Strengh(N)1c㎡ | >60 | >70 | >80 | >80 |
Washable | ||||
40(℃) | *** | *** | *** | *** |
60(℃) | ** | ** | * | ** |
80(℃) | Yes | NO | NO | NO |
Feature | very soft, good elasticity and stickiness | very soft, good elasticity and stickiness, long time non-yellowing | lower work temperature,good stickiness,widely adhesion arange. | lower work temperature,good stickiness,widely adhesion arange. |
Nomal Adhesive Materials | Fabric,Diving clot,Laica,Jersey,pu leather,tpu,pvc,fiber,nylon and so on. | (exclude metal materials)all of fabric and plastics. | ||
Application | printing,package,box,clothing,shose,handicraft,electronic etc. |
Packaging Details:
Packaging | 1PC/PE FILM, 100yard/roll, 1 rolls/CTN, or it's up on the customer's option |
Storage Conditions | Stored in dry unopened packaging at room temperature at least 2 years. |
Delivery Detail:
Shipped in 3-15 days after payment
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
Melt Point: 70-110℃,
Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
Thickness:0.05mm-1mm,
Width: 5mm-1500mm,
Length:1M-1000M/roll,
Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)
A.Conventional Aperture:1.4mm,1.5mm,1.8mm
B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm
We can tailor hot melt film as your business and demands.
Why choose us:
1. Quality control and stability: Applied with high quality,each product is produced under strict quality control at every manufacturing process from raw materials to final testing, which ensures our products come with perfect performance on appearance and consistency.
2.Reasonable price: We frequently strive to offer better, flexible and win-win price.
3. Fast delivery. We will ship out your order within 1-2 business days after verification of the payment and confirmation of the order.If out of stock,we will inform you in advance.
4. Premium custom service: Fast response within 24hours. Over 10 years of experience in customer service, problem solving, marketing and logistic delivery, Team support from professional sales team.
5. Our aims:High quality, low price,fast delivery and good service.
6. Be faithful, responsible, honest and sincere to our client, keep our promise.
FAQ:
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
