Place of Origin | Guangdong |
---|---|
Brand Name | Hunter-men |
Certification | REACH,ROHS,ISO9001:2015 |
Model Number | HT03 |
Minimum Order Quantity | 100Yards |
Price | $0.50 - $2.50/ Yard |
Packaging Details | 2 rolls /carton, 1 PE bags/rolls or as you demands. |
Delivery Time | 1-15 days |
Payment Terms | T/T, D/P, D/A, Western Union |
Supply Ability | 10000 Roll/Rolls per Day |
Classification | Double Hot Melt Adhesive Film | Usage | Fiber & Garment, Footwear & Leather |
---|---|---|---|
Appearance | Milky White | Melting Point | 115℃ |
Glue Line Temperature | 200-220℃ | Washable | 60℃ |
Conventional Thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm | Conventional Width | 30cm,45cm,48cm,86cm,97cm,100cm |
Capacity | 20,000 YDS | Port | Shenzhen |
Highlight | PES Hot Melt Adhesive Film For Textile Fabric,30cm Hot Melt Adhesive Film,30cm hot melt glue film |

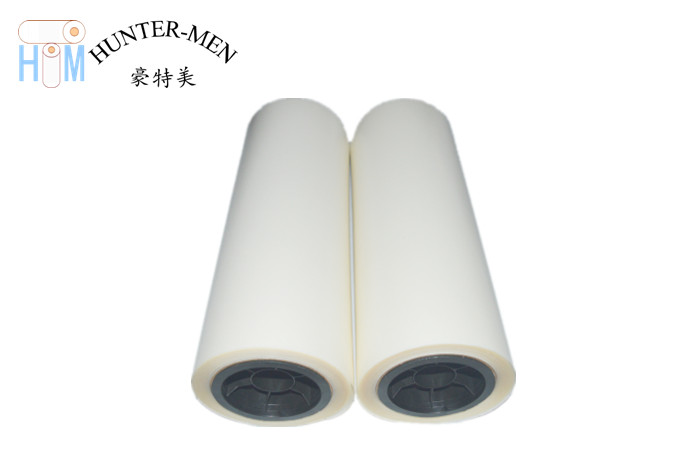

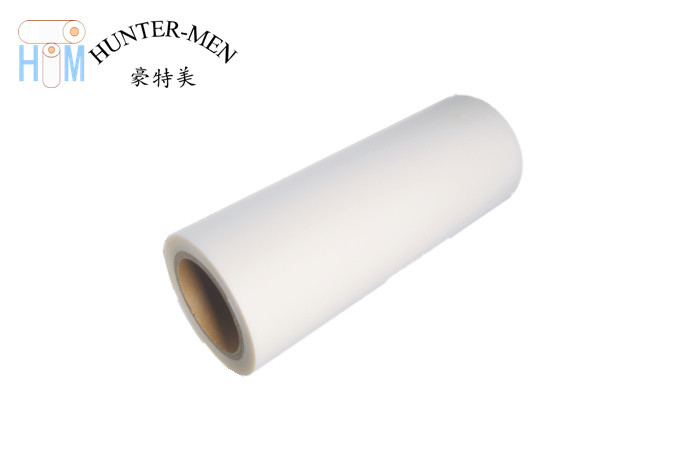

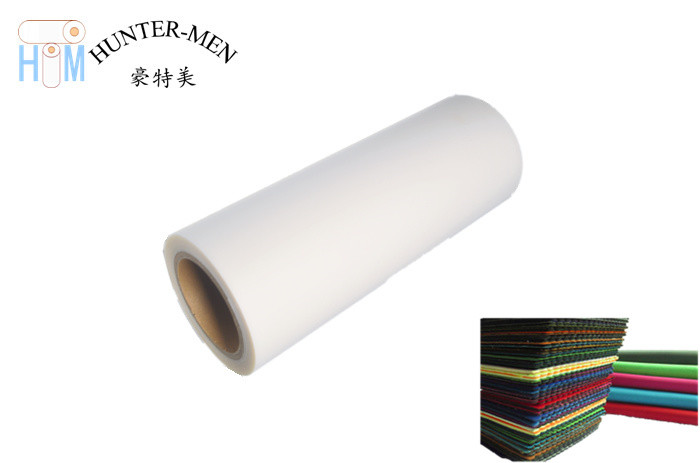

PES Hot Melt Adhesive Film for Bonding Non-Woven Fabrics
Composition:
CO-Polyester + Release Paper
Description:
PES Hot melt Glue White Color Sheets is us through the high precision coating machine to coating the melting raw materials well-distributed into the release paper, and the thin film colors is milky white.It is usually used to bonding apperals and Chenille embroidery patch industies.This product is a thermoplastic film hot melt adhesive, entrusted to the release of paper, can be repeatedly heated plasticized bonding.
Physical Characteristics:
Color | Milky White | Release Liner | Glassine release paper |
Density | 1.2±0.02g/cm³ | Conventional thickness | 60mic,80mic,100mic,120mic,150mic |
Melt Flow Index (Condition:160℃/2.16KG ASTMD1238-04) |
32±5g/10min |
Conventional Width | 50cm,100cm,150cm |
operating Temperature | 120℃-160℃ | Length | 100yards/100meters or it's up on your option |
Flow Beginning Point | 108℃±5℃ | Normal Products Specification | 100cm (width)*100yards(Length) /roll |
Recommended Bonding Conditions:
First Lamination | Second Implanting | ||
Mechanical Mold Temperature | 120℃-130℃ | Mechanical Mold Temperature | 140℃-160℃ |
Hot Pressing Time | 3-5 seconds | Hot Pressing Time | 8-15 seconds |
Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
Applications:
This kind of hot melt adhesive products has excellent adhesion to textile products, PVC, PC etc.It can resistant 60℃ washing. But It is also widely usd to bonding cottons, leathers, woods, papers, aluminum and other metarils.
Packaging Details:
Packaging | 1PC/PE FILM, 100yard/roll, 1 rolls/CTN, or it's up on the customer's option. |
Storage Conditions | Stored in dry unopened packaging at room temperature at least 2 years. |
Hot Melt Adhesive Film's Advantages :
2. Envorentment friendly;
3. High efficiency. In the all process, just need a several seconds.
4. Safety. This product is non-solvent and haven't any hidden trouble in your production.
5. Hot melt adhesive film has better fastness than other glue which could be widely used to laminate many materials;
6. Automatic production can be cometure.
7. Portable and easy operattion
8. Reusable. At the film melting,you can use it again and again.
9. Hot melt adhesive film has good dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as adhesives and sealants;
May You Interested in:
Hot Melt Adhesive Film | |||
Type | HT01-2000 | HT01 | HT05 |
Color | Transparent | Transparent | Transparent |
Bottom Materials | Single Silicon Glassine Release Paper | ||
Melt Point(℃) | 85 | 100 | 100 |
Pressing Temperature(℃) | 110-150 | 120-170 | 120-160 |
Adhesive Strengh(N/1c㎡) | >80 | >70 | >80 |
Normal Thickness | 0.06mm,0.08mm,0.1mm, 0.12mm,0.15mm | ||
Normal Specification (width*length) | 48cm*100YDS | 48cm*100YDS | 50cm*100YDS |
Dry Cleaning | NO | NO | *** |
Washable | |||
40(℃) | *** | *** | *** |
60(℃) | * | NO | ** |
80(℃) | NO | NO | * |
Why Choose Us:
1. Quality control and stability: Applied with high quality,each product is produced under strict quality control at every manufacturing process from raw materials to final testing, which ensures our products come with perfect performance on appearance and consistency.
2.Reasonable price: We frequently strive to offer better, flexible and win-win price.
3. Fast delivery. We will ship out your order within 1-2 business days after verification of the payment and confirmation of the order.If out of stock,we will inform you in advance.
4. Premium custom service: Fast response within 24hours. Over 10 years of experience in customer service, problem solving, marketing and logistic delivery, Team support from professional sales team.
5. Our aims:High quality, low price,fast delivery and good service.
6. Be faithful, responsible, honest and sincere to our client, keep our promise.
