Product Details:
Payment & Shipping Terms:
|
| Density: | 1.2±0.02g/cm³ | Melting Point(°C): | 110℃ |
|---|---|---|---|
| Name: | Hot Melt Adhesive Film | Washing: | 60℃ |
| Viscosity: | 380(pa.s@160℃) | Thickness: | 60mic=0.06mm |
| Width: | 50cm | ||
| High Light: | 60mic Polyester Hot Melt Adhesive Film,Bonding Fabrics Hot Melt Adhesive Film,Foams Hot Melt Glue Film |
||

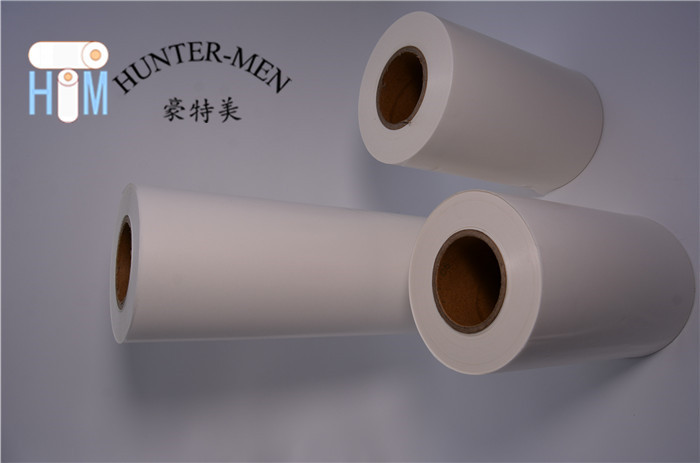

High Bonding 60mic thickness Polyester Hot Melt Adhesive Film Use to Bonding Fabrics and Foams
Conventional thickness*width*length:
0.08mm*50cm*100meters
0.1mm*50cm*100meters
0.12mm*50cm*100meters
0.08mm*100cm*100meters
0.1mm*100cm*100meters
0.12mm*100cm*100meters
Physical Characteristics:
| Color | Cream White | Release Liner | Glassine paper |
| Density | 1.2±0.02g/cm³ | Conventional thickness | 60mic |
| Melt Flow Index |
32±5g/10min |
Width | 50cm |
| operating Temperature | 140℃-160℃ | Length | 100meters per rolls |
| Flow Beginning Point | 110℃ | Normal Products Specification | 60mic(Thickness)*50cm(width)*100meters(Length) |
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 100℃-140℃ | Mechanical Mold Temperature | 140℃-160℃ |
| Hot Pressing Time | 1-5 seconds | Hot Pressing Time | 8-15 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
Usage Method:
Hot melt glue is usually made of iron or other hot bonding equipment. The processing structure have two layers of material, three layers of materials.
| Temperature | 120-160℃ |
| Time | 3-15seconds |
| Pressure | 0.6mpa |
Double layers :
Three layers :
|
Shenzhen CIty Hunter-Men Plastics Products CO.,LTD as a professional manufaturer was established in 2013, with rich experience specializing in R&D and producting all kinds of hot melt adhesive products. Owing varied production machines to match custom demands. Mainly Markets are Europe, America, South Asia, South Africa and so on. Our factory has passed ISO9001:2015 quality control certification system. The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film. |
|||
|
|
|
|
|
| Film Casting Machine | Film Coating Machine | Film&Tape Slitting machine | Fully Automatism Number Control Slitter | Fully Automatism Number Control Guillotine |
Why choose us
1. Quality control and stability: Applied with high quality,each product is produced under strict quality control at every manufacturing process from raw materials to final testing, which ensures our products come with perfect performance on appearance and consistency.
2.Reasonable price: We frequently strive to offer better, flexible and win-win price.
3. Fast delivery. We will ship out your order within 1-2 business days after verification of the payment and confirmation of the order.If out of stock,we will inform you in advance.
4. Premium custom service: Fast response within 24hours. Over 10 years of experience in customer service, problem solving, marketing and logistic delivery, Team support from professional sales team.
5. Our aims:High quality, low price,fast delivery and good service.
6. Be faithful, responsible, honest and sincere to our client, keep our promise.
Application of Hot Melt Adhesive Film
It can bond various materials such as metal, plastic, paper, wood, ceramics, textiles, etc., and good results can also be obtained on the surface of uneven objects; mainly used for the bonding of nameplates, plastics, hardware, electronic products, metal Bonding and fixing of shells, bonding and fixing of reinforcing plates, lamination and bonding of smart cards and chip passports, bonding of mobile phone window frames and front covers, bonding of camera battery slots, etc.
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
A.Melt Point: 70-110℃,
B.Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
C.Thickness:0.05mm-1mm,
D.Width: 5mm-1500mm,
E.Length:1M-1000M/roll,
F.Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)
A.Conventional Aperture:1.4mm,1.5mm,1.8mm
B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm
Choose Us! Win-win Situation!
1.We have experienced team and high-tech equipments.
2.We can make product according to your requirements, such as your size, color, basic materils
3.We can offer you very competitive price.
4.Offering professional one-on one service and replying E-mail within 24 hours.
5.We will checking the quality of the goods before shipment.
