| Type: | HT03 | Color: | Cream White |
|---|---|---|---|
| Material: | PES | Density: | 1.2±0.02g/cm³ |
| Melting Point(°C): | 110℃ | Melt Flow Index: | 30(g/10mic@160℃) |
| Washing: | 60℃ | Viscosity: | 380(pa.s@160℃) |
| High Light: | Thermal Adhesive Film SGS,30g/10 Mic Thermal Adhesive Film,ISO9001 thermal bonding film |
||

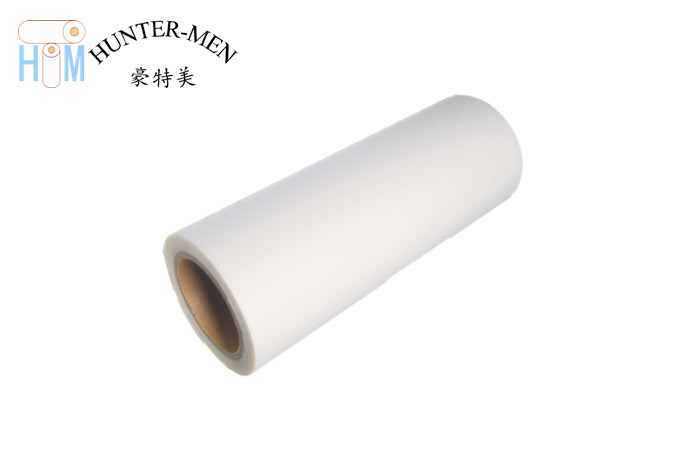

High Density Polyester Hot Melt Adhesive Film For Weaving Marks Match SGS ISO9001 Standard
Structure:
CO-Polyester + Release Paper
Description:
HT03 is a thermoplastic film hot melt adhesive, suitable for a variety of materials, it can stick to materials after one or more times melt by hot temperature,after hot melting and quickly cold speed feature make it use to various high speed production. It has excellent adhesion to textile,plastics(PET, PVC, PC etc),metals(iron,aluminium,copper etc),paper and so on.This product is resistant 60℃ washing.
Physical Characteristics:
| Color | Cream White | Release Liner | Glassine release paper |
| Density | 1.2±0.02g/cm³ | Conventional thickness | 0.06mm,0.08mm,0.1mm,0.12mm,0.15mm |
| Melt Flow Index |
32±5g/10min ASTMD1238-04 |
Conventional Width | 48cm,50cm,97cm,100cm,150cm |
| operating Temperature | 140℃-160℃ | Length | 100yards/100meters or it's up on your option |
| Flow Beginning Point | 110℃ | Normal Products Specification | 50cm (width)*100yards(Length) /roll or as your demands |
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 110℃-130℃ | Mechanical Mold Temperature | 130℃-160℃ |
| Hot Pressing Time | 3-5 seconds | Hot Pressing Time | 8-15 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
Applications:
HT03 is widely used in garment labels,embroidery patches and badges,top fly of outdoor jecket,cap peak,mesh fabric lamination for sport shoes, reflective materials, car mats, car seats, automobile trilms, conductive colth, conductive foam,polishing wheel,heat and sound insulation materials,pvc,pe materials lamination etc.
HOW TO USE:
Mass-production:
|
||||||
| Embroidery by Machine | Embroidery Semi-Product | Hot Complex Machine | Embroidery with Backing Glue Semi-Product | Laser Cutting | Hot Pressure | Finished |
Small-batch Production:
|
|||||
| Embroidery by Machine | Embroidery Semi-Product | Embroidery with Backing Glue | Laser Cutting or Solder Iron | Hot Pressure | Finished |
Note: Due to the different bonding materials have different heat-shielding performance, the operation parameters in the technical data are only for reference. The specific hot pressing temperature, pressure and time shall be adjusted according to the different bonding materials, operating equipment and process.(Please don’t use steam when you operate by flatiron.)
Usage Method:
Hot melt glue is usually made of iron or other hot bonding equipment. The processing structure have two layers of material, three layers of materials.
| Temperature | 120-160℃ |
| Time | 3-15seconds |
| Pressure | 0.6mpa |
Double layers :
Three layers :
|
Shenzhen CIty Hunter-Men Plastics Products CO.,LTD as a professional manufaturer was established in 2013, with rich experience specializing in R&D and producting all kinds of hot melt adhesive products. Owing varied production machines to match custom demands. Mainly Markets are Europe, America, South Asia, South Africa and so on. Our factory has passed ISO9001:2015 quality control certification system. The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film. |
|||
|
|
|
|
|
| Film Casting Machine | Film Coating Machine | Film&Tape Slitting machine | Fully Automatism Number Control Slitter | Fully Automatism Number Control Guillotine |
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
A.Melt Point: 70-110℃,
B.Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
C.Thickness:0.05mm-1mm,
D.Width: 5mm-1500mm,
E.Length:1M-1000M/roll,
F.Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)
A.Conventional Aperture:1.4mm,1.5mm,1.8mm
B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm
