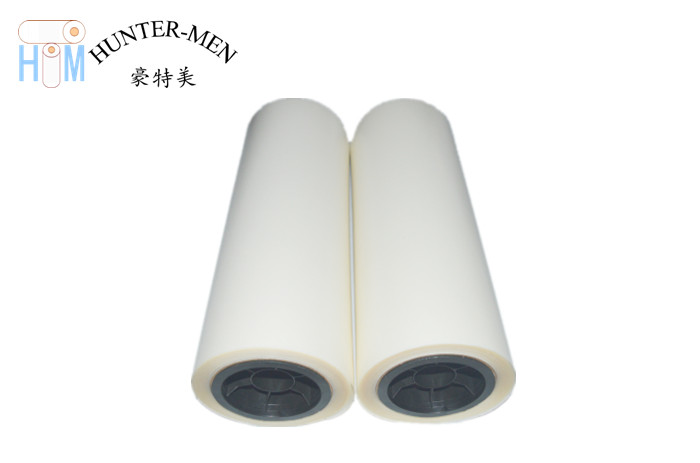

1000m/ Rolls Thermoplastic Film Printable Heat Transfer Film 1280mm Width
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hunter Men |
| Certification | REACH,ROHS，ISO9001 |
| Model Number | HT05 |
| Minimum Order Quantity | 1000meters |
| Price | Negotiable |
| Packaging Details | 1 to 4 rolls /CTN, 1 PE bags per rolls or it's up on your option. |
| Delivery Time | 1-15work days |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P,Alibaba |
| Supply Ability | 20000meters per days |
Product Details
| Color | White | Material | PES |
|---|---|---|---|
| Density | 1.2±0.02g/cm³ | Melting Point(°C) | 110℃ |
| Melt Flow Index | 30(g/10mic@160℃) | Washing | 60℃ |
| Viscosity | 380(pa.s@160℃) | Thickness | 0.06mm,0.08mm |
| Width | 1060mm,1280mm | ||
| Highlight | Printable Heat Transfer Film 1280mm Width,1000m/ Rolls Thermoplastic Film,1280mm Width Thermoplastic Film |
||
Product Description
Polyester Hot Melt Adhesive Film For Metallic Heat Transfer Foil Film
Structure:
CO-Polyester + Release Paper
Description:
HT03 is a thermoplastic film, it is suitable for a variety of materials , it can stick to materials after one or more times melt by hot temperature,after hot melting and quickly cold speed feature make it use to various high speed production. It has excellent adhesion to textile,plastics(PET, PVC, PC etc),metals(iron,aluminium,copper etc),paper and so on.This product is resistant 60℃ washing.
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:
| Color | Cream White | Release Liner | Glassine paper |
| Density | 1.2±0.02g/cm³ | Conventional thickness | 0.06mm,0.08mm |
| Melt Flow Index |
32±5g/10min |
Conventional Width | 1060mm,1280mm |
| operating Temperature | 140℃-160℃ | Length | 1000meters per rolls |
| Flow Beginning Point | 110℃ | Normal Products Specification | 0.06mm(Thickness)*106cm(width)*1000meters(Length) |
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 110℃-130℃ | Mechanical Mold Temperature | 130℃-160℃ |
| Hot Pressing Time | 3-5 seconds | Hot Pressing Time | 8-15 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
Usage Method:
Hot melt glue is usually made of iron or other hot bonding equipment. The processing structure have two layers of material, three layers of materials.
| Temperature | 120-160℃ |
| Time | 3-15seconds |
| Pressure | 0.6mpa |
Double layers :
Three layers :
Company Profile:
|
Shenzhen CIty Hunter-Men Plastics Products CO.,LTD as a professional manufaturer was established in 2013, with rich experience specializing in R&D and producting all kinds of hot melt adhesive products. Owing varied production machines to match custom demands. Mainly Markets are Europe, America, South Asia, South Africa and so on. Our factory has passed ISO9001:2015 quality control certification system. The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film. |
|||
|
|
|
|
|
| Film Casting Machine | Film Coating Machine | Film&Tape Slitting machine | Fully Automatism Number Control Slitter | Fully Automatism Number Control Guillotine |
1.We are a professional manufacturer of hot melt adhesive film over 10 years of industry experience.
2.Competitiveness :Have an independent R&D center and technical team,have advanced production equipment, and strict quality control.
3. Our Wish: Provide the highest quality products, provide professional customer service, and delivery quickly at the competitive price for all client.
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
A.Melt Point: 70-110℃,
B.Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
C.Thickness:0.05mm-1mm,
D.Width: 5mm-1500mm,
E.Length:1M-1000M/roll,
F.Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)
A.Conventional Aperture:1.4mm,1.5mm,1.8mm
B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm
Choose Us! Win-win Situation!
1.We have experienced team and high-tech equipments.
2.We can make product according to your requirements, such as your size, color, basic materils
3.We can offer you very competitive price.
4.Offering professional one-on one service and replying E-mail within 24 hours.
5.We will checking the quality of the goods before shipment.
Contact me:
Lily
What'sapp & Wechat: +8615817445470
Tel: +8615817445470 Email: lily@szhotmelt.com
Choose professional hot melt adhesive film manufacture,you will save more money and time.Contact us without delay!
