Thermal Polyester Hot Melt Adhesive PES Film Embroidery Patch Backing Glue
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Hunter Men |
| Certification | SGS,ISO9001:2015 |
| Model Number | HT03 |
| Minimum Order Quantity | 1000 Yard |
| Price | $0.50 - $2.50 / Yard |
| Packaging Details | 2 rolls /carton, 1 PE bags/rolls or as you demands. (can be customized) |
| Delivery Time | 5-15 work days |
| Payment Terms | Western Union, T/T, D/P, D/A |
| Supply Ability | 10000 Roll/Rolls per Day |
Product Details
| Name | Hot Melt Adhesive Film | Main Raw Material | Polyester Hot Melt Adhesive Granule |
|---|---|---|---|
| Color | White | Usage | Bonding Embroidery Patch Backing Glue |
| Melting Point | 108℃ | Thickness | 0.01-0.3mm(can Be Customized) |
| Width | 5mm-1600mm(can Be Customized) | Packing | Can Be Customized |
| High Light | Hot Melt Adhesive PES Film,Backing Glue Thermal Polyester Film,Embroidery Patch PES Film |
||
Product Description

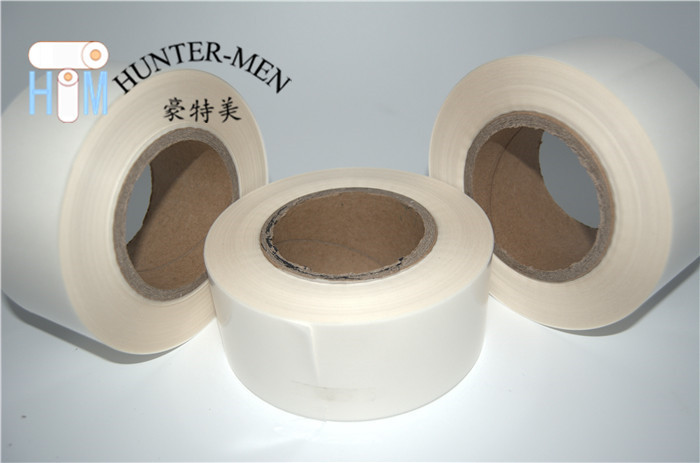

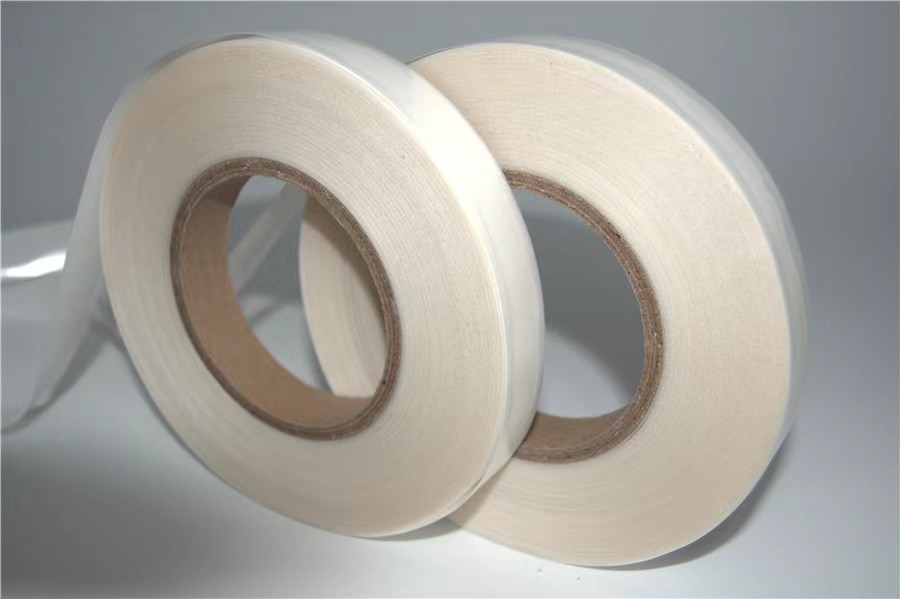

Thermal Polyester Film Hot Melt Adhesive PES Film Embroidery Patch Backing Glue
Description:
Hot Melt Adhesive Film has two parts: the Film part and the Release Paper part on its back. The Film part is not adhesive under the normal temperature. When it reaches its melting point, the Film part has strong adhesion so that the two materials can be adhered to each other permanently and firmly with the technology of heat press by using the hot press machine.
Physical Characteristics:
| Color | Transparent | Release Liner | Glassine release paper |
| Density | 0.9±0.02g/cm³ | Normal thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
| Melt Flow Index |
35±5g/10min ASTMD1238-04 |
Normal Width | 48cm,50cm,96cm,100cm |
| operating Temperature |
100℃-1 50℃ |
Length | 100yards/100meters or it's up on your option |
| Flow Beginning Point | 105℃±5℃ | Normal Products Specification | 48cm (width)*100yards(Length) /roll |
Recommended Bonding Conditions:
| First Backing Operate | Second Hot Pressure Operate | ||
| Backing Temperature | 100℃-130℃ | Hot Pressure Temperature | 140℃-160℃ |
| Hot Pressing Time | 1-5seconds | Hot Pressure Time | 5-15seconds |
| Pressure | 0.5-1.5KG/CM² | Pressure | 0.5-1.5KG/CM² |
Feature:
1. High elasticity
2. Strong adhesion
3. Strong washing resistance
4. Eco-friendly
5. Safe and harmless
6. Wide range of applications
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Applications:
It was widely used in composite Textile, adhesive-bonded fabric, Non-Woven Fabrics, Leathers or other roll materials.
FAQ:
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
