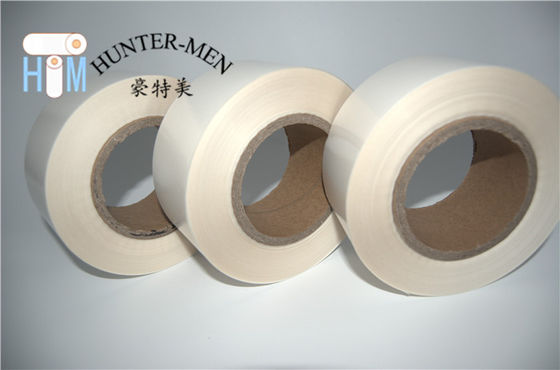

Springback TPU Thermal Bonding Adhesive Film 1500mm No Deformation For Traceless Briefs
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hunter Men |
| Certification | SGS, ISO9001 |
| Model Number | HT07-40P |
| Minimum Order Quantity | 5000 ㎡ |
| Price | Negotiable |
| Packaging Details | 100meters/Roll and PE bag package,1 rolls in Carton (can be customized) |
| Delivery Time | 3-15 work days (depends on the order quantity) |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P,Alibaba，Paypal |
| Supply Ability | 30000 ㎡ per day |
Product Details
| Main Raw Material | Polyurethane | Feature | Springback No Deformation |
|---|---|---|---|
| Melt Flow Index | 35±5g/10min (Condition:190℃,2.16Kg) | Melt Point | 120℃ |
| Work Temperature | 170-190℃ | Width | 1500mm (can Be Customized) |
| Length | 100 Meters Per Roll (can Be Customized) | Usage | Traceless Briefs |
| High Light | Springback Thermal Bonding Adhesive Film,No Deformation TPU Adhesive Film,1500mm Thermal Bonding Adhesive Film |
||
Product Description
Springback No Deformation TPU Thermal Bonding Garment Accessories for Traceless Briefs
Model Number:HT07-40P
Description:
HT07-40P is thermoplastic material, suitable for a variety of materials, it can stick to materials after one or more times melt by hot temperature,after hot melting and quickly cold speed feature make it use to various high speed production.It performs an excellent adhesion for Fabrics,Diving Fabrics,Laica,Jersey, other elastic fabrics and so on. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
Features&Usages:
It has good resilience, elasticity, heat resistance, cold resistance and water resistance.This adhesive product possesses excellent chemical additives resistant, It main used to composite elastic fabrics to produce can be used as a health-care vest, an underwear, a health-care waistband, kneepads etc.
Operate machine:iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:
| Color | Transparent | Release Liner | Double Silicone Glassine Release paper |
| Density | 1.2±0.02g/cm³ | Conventional thickness | 30mic,50mic,80mic,100mic (can be customized) |
| Melt Flow Index | 35±5g/10min |
Conventional Width | 1500mm (can be customized) |
| Hardness (Shore A) | 60A | Length | 100meters(can be customized) |
| Flow Beginning Point | 120℃ | Normal Size /Rolls |
1535mm(width)*100meters(Length) (can be customized) |
Recommended Bonding Conditions:
| First Backing Operate | Second Hot Pressure Operate | ||
| Backing Temperature | 130℃-150℃ | Hot Pressure Temperature | 150℃-190℃ |
| Hot Pressing Speed | 20m/min | Hot Pressure Speed | 15m/min |
| Pressure | 0.5-1.5KG/CM² | Pressure | 0.5-1.5KG/CM² |
Note: Due to the different bonding materials have different heat-shielding performance, the operation parameters in the technical data are only for reference. The specific hot pressing temperature, pressure and time shall be adjusted according to the different bonding materials, operating equipment and process.(Please don’t use steam when you operate by flatiron.)
Storage Conditions:
Stored in dry unopened packaging at room temperature at least 2 years.
How to use it:
FAQ:
1 .How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, after heat pressure, it is able to bond other materials, Different materials hot melt adhesive film have different performances and different usages, we need know your demands clearly first ,then we can recommend good products for you.
2.Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having over 10 years experience. we are able to assist you to R&D new products. So if you need bonding some special materials, please don't hesitate to let us know.
3.How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way .Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some samples for reference, please let us know your fully address/ship
mode with courier ,and we will arrange samples to you.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept L/C ,T/T ,Western Union , Paypal.
