Transparent Elasticity TPU Heat Bonding Tape Garment No Deformation
Place of Origin Shenzhen,China
Brand Name Hunter Men
Certification SGS, ISO9001
Model Number HT07-40P
Minimum Order Quantity 5000 ㎡
Price Negotiable
Packaging Details 100meters/Roll and PE bag package,1 rolls in Carton (can be customized)
Delivery Time 3-15 work days (depends on the order quantity)
Payment Terms Western Union, L/C, T/T, D/A, D/P,Alibaba,Paypal
Supply Ability 30000 ㎡ per day
Product Details
Main Raw Material Polyurethane Feature Elasticity No Deformation
Melt Flow Index 35±5g/10min (Condition:190℃,2.16Kg) Melt Point 120℃
Work Temperature 170-190℃ Width 1500mm (can Be Customized)
Length 100 Meters Per Roll (can Be Customized) Usage Garment Accessories
High Light

TPU Heat Bonding Tape

,

Polyurethane TPU Bonding Tape

,

Transparent Elasticity TPU Bonding Tape

Product Description

Transperant Elasticity No Deformation TPU heat bonidng tape Garment Accessories for Traceless Underwear
Model Number:HT07-40P
Description:
HT07-40P is thermoplastic material, suitable for a variety of materials, it can stick to materials after one or more times melt by hot temperature,after hot melting and quickly cold speed feature make it use to various high speed production.It performs an excellent adhesion for Fabrics,Diving Fabrics,Laica,Jersey, other elastic fabrics and so on. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
Features&Usages:
It has good resilience, elasticity, heat resistance, cold resistance and water resistance.This adhesive product possesses excellent chemical additives resistant, It main used to composite elastic fabrics to produce can be used as a health-care vest, an underwear, a health-care waistband, kneepads etc.
Operate machine:iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:

Color Transparent Release Liner Double Silicone Glassine Release paper
Density 1.2±0.02g/cm³ Conventional thickness 30mic,50mic,80mic,100mic (can be customized)
Melt Flow Index 35±5g/10min

Conventional Width 1500mm (can be customized)
Hardness (Shore A) 60A Length 100meters(can be customized)
Flow Beginning Point 120℃ Normal Size /Rolls

1535mm(width)*100meters(Length) (can be customized)

Recommended Bonding Conditions:

First Backing Operate Second Hot Pressure Operate
Backing Temperature 130℃-150℃ Hot Pressure Temperature 150℃-190℃
Hot Pressing Speed 20m/min Hot Pressure Speed  15m/min
Pressure 0.5-1.5KG/CM² Pressure 0.5-1.5KG/CM²

Note: Due to the different bonding materials have different heat-shielding performance, the operation parameters in the technical data are only for reference. The specific hot pressing temperature, pressure and time shall be adjusted according to the different bonding materials, operating equipment and process.(Please don’t use steam when you operate by flatiron.)

Storage Conditions:
Stored in dry unopened packaging at room temperature at least 2 years.

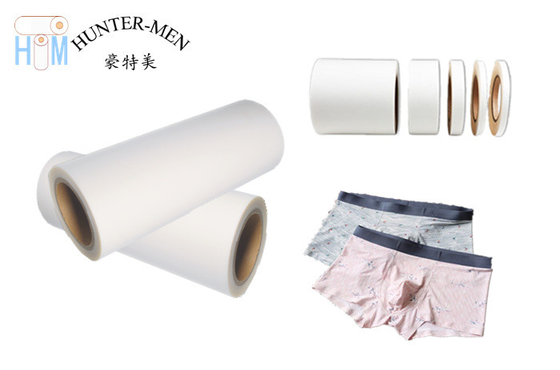

Transparent Elasticity TPU Heat Bonding Tape Garment No Deformation 0

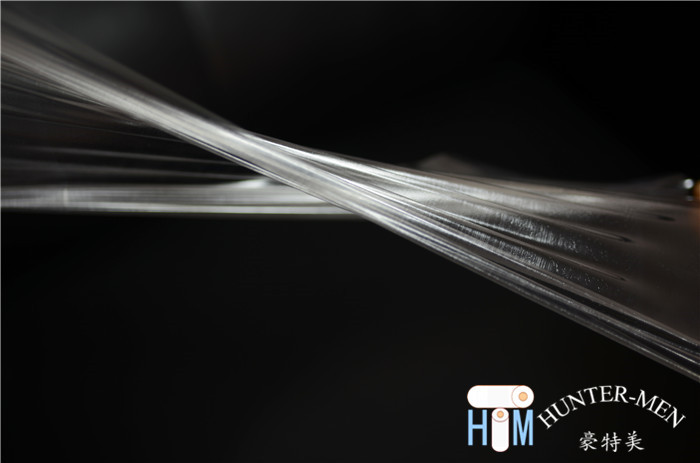

Transparent Elasticity TPU Heat Bonding Tape Garment No Deformation 1

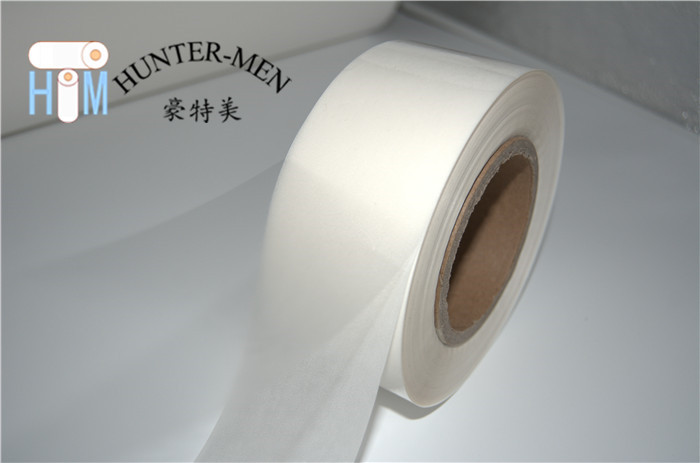

Transparent Elasticity TPU Heat Bonding Tape Garment No Deformation 2
How to use it:
Transparent Elasticity TPU Heat Bonding Tape Garment No Deformation 3

FAQ:

Q1) . What is hot melt adhesive film?

A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,

Q2).Do you accept OEM or ODM?

Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,

Q3).How do you ship the products?

If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,

Q4). Do you provide free sample? And how many days it will take?

Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,

Q5). How long is the lead time?

Sample lead time: 1-3 days

Bulk lead time: 7-20days(depends on order quantity),

Q6). How do I pay for my order?

We usually accept L/C ,T/T ,Western Union , Paypal.
