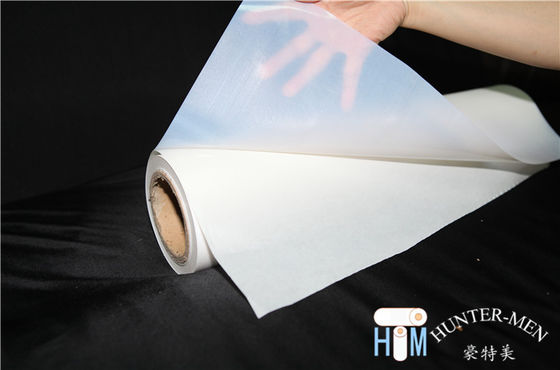

CO Polyester Hot Melt Adhesive Film REACH For Embroidery Patches
  • CO Polyester Hot Melt Adhesive Film REACH For Embroidery Patches
  • CO Polyester Hot Melt Adhesive Film REACH For Embroidery Patches
Place of Origin Shenzhen
Brand Name Hunter Men
Certification REACH,ROHS,ISO9001
Model Number HT03
Minimum Order Quantity 100 rolls
Price Negotiable
Packaging Details 2 or 4 rolls /CTN, 1 PE bags/rolls or it's up on your option.
Delivery Time 1-15work days
Payment Terms Western Union, L/C, T/T, D/A, D/P,Alibaba
Supply Ability 1500rolls per Week
Product Details
Color Milky White Material CO-polyester
Application Bonding Embroidery Patches To Fabrics Feature Washing Resistance, Good Adhesion,Environmental
Thickness 100mic Width(mm) 150cm
Melting Point(°C) 110℃ Washing 60℃
High Light

CO Polyester Hot Melt Adhesive Film

,

Hot Melt Adhesive Film REACH

,

Embroidery Patches Translucent Adhesive Film
Product Description

Hot Melt Adhesive Film Milky White Color And Washing Resistance For Embroidery Patches



Structure:

CO-Polyester + Release Paper



Description:

Polyester Hot Melt Adhesive Film is a thermoplastic adhesive product , the raw material is ployester, the structure is polyester film + release paper,it is suitable for wide range of adherend . It can be repeatedly heated for bonding. It performs an excellent adhesion for fabrics, textiles, cottons etc. This adhesive product possesses excellent washability and chemical additives resistant.It is widely used in garment labels,embroidery patches and badges,top fly of outdoor jecket,cap peak,mesh fabric lamination for sport shoes, reflective materials, car mats, car seats, automobile trilms, conductive colth, conductive foam,polishing wheel,heat and sound insulation materials,pvc,pe materials lamination etc.



Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.

CO Polyester Hot Melt Adhesive Film REACH For Embroidery Patches 0CO Polyester Hot Melt Adhesive Film REACH For Embroidery Patches 1



Physical Characteristics:



Color

Milky White

Release Liner Glassine release paper
Density 1.2±0.02g/cm³ Conventional thickness 0.1mm,0.12mm,0.15mm
Melt Flow Index

32±5g/10min
Condition:160℃/2.16KG

ASTMD1238-04

 Conventional Width 50cm,100cm,150cm
operating Temperature 140℃-160℃ Length 100yards/100meters or it's up on your option
Flow Beginning Point 110℃ Normal Products Specification 150cm (width)*100yards(Length) /roll





Recommended Bonding Conditions:



First Lamination Second Implanting
Mechanical Mold Temperature 120℃-130℃ Mechanical Mold Temperature 140℃-160℃
Hot Pressing Time 1-5 seconds Hot Pressing Time 5-15 seconds
Pressure 0.3-0.6mpa Pressure 0.3-0.6mpa



NOTICE: Seller hereby excludes any express warranties and the implied warranties of merchantability and fitness for a particular purpose. The following is made in lieu of any such warranties. Tunsing believes the information supplied are reliable, but does not guarantee that any results shown or claimed will be obtained. Before using the user shall determine the suitability and fitness of the product for its intended use. The user assumes all risks and liability whatever in connection with its own tests and use. Neither seller nor manufacturer shall be liable for any injury, loss or damage, direct or consequential, arising out of the use, misuse or inability to use the product.



Conventional thickness* width*length:



Width Range 10-1500mm
Length Range 100yards-1000yards per roll
Thickness Range 60MIC-180MIC



We can tailor hot melt film as your business and demands.



Packaging Details:



Packaging 1PC/PE FILM, 100meters/roll, 1 rolls/CTN, or it's up on the customer's option
Storage Conditions Stored in dry unopened packaging at room temperature at least 2 years.


Support Customization Production:



We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.



1. According to the Film Performance:



Melt Point: 70-110℃,

Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),

Thickness:0.05mm-1mm,

Width: 5mm-1500mm,

Length:1M-1000M/roll,

Colors:All of colors



2.According to the base material:



A. Single/Double side silicone glassine release paper,

B. Single/Double side silicone kraft release paper,

C. Single/Double side silicone PE coated paper,

D. Matte / Glossy PP paper,

E. Matte / Glossy Pearlescent paper,

F. Single/Double side silicone PET release film,

G. Without base materials

H. You also can choose the base materials thickness and grammage.





FAQ:

Q1) . How about your MOQ of your hot melt Adhesive Film?

A:Our PO,EVA, TPU, PES ,PA hot melt adhesive film , MOQ is 100yards.

Q2). What is your normal width ?

A:Our normal width are 48cm, 50cm, 96cm,100cm,150cm and so on.

Q3). Do you provide free sample? And how many days it will take?

A:Yes, we provide free 1-2yards sample, only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation,

Q4). What is your lead time ?

A:3-5 days , depending on the quantity , we almost have safe stock .

Q5). How do I pay for my order?

A:We accept T/T ,Western Union , Paypal .
