Place of Origin | China |
---|---|
Brand Name | Hunter Men |
Certification | REACH,ROHS,ISO9001 |
Model Number | HT01-20A |
Minimum Order Quantity | 100 rolls |
Price | Negotiable |
Packaging Details | 2 or 4 rolls /CTN, 1 PE bags/rolls or it's up on your option. |
Delivery Time | 1-7 work days |
Payment Terms | Western Union, L/C, T/T, D/A, D/P,Alibaba |
Supply Ability | 300rolls per day |
Type | HT01-20A | Structure | PO Film + Release Paper |
---|---|---|---|
Film Appearance | Colorless And Transparent | Main Raw Material | Polyolefins |
Substrate Material | Release Paper | Brand | Hunter Men |
Thickness | 60mic | Width(mm) | 48cm |
Packing | 100 Yards/Roll | Melting Point(°C) | 105℃±5℃ |
Hot Pressing Temperature(°C) | 130-170℃ | Processing Time(seconds) | 5-20 Seconds |
Highlight | Hunter Men Embroidery Patch Backing Glue,Embroidery Patch Backing Glue 48cm,48cm Transparent Adhesive Film |
60mic Thickness Transparent EAA Hot Melt Adhesive Film For Weaving Mark
Description:

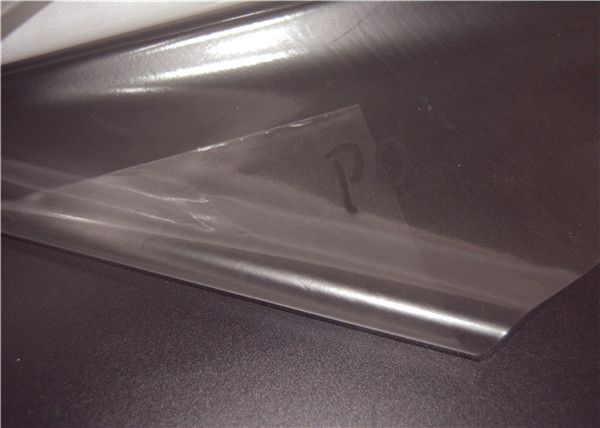

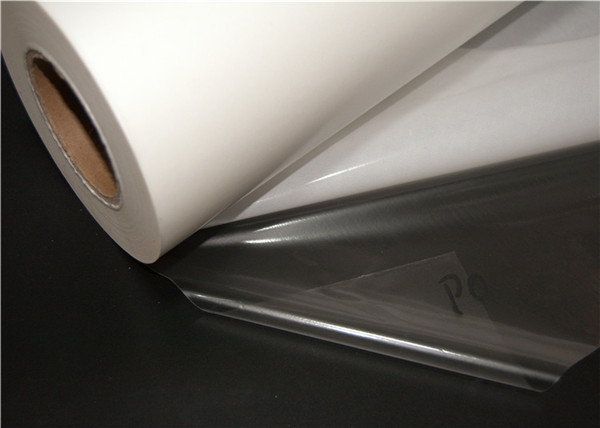

EAA Hot Melt Adhesive Film is a thermoplastic adhesive product , suitable for wide range of adherend . It can be repeatedly heated for bonding. It performs an excellent adhesion for fabrics, textiles, cotton etc. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
Physical Characteristics:
Color | Transparent | Release Liner | Glassine release paper |
Density | 0.9±0.02g/cm³ | Conventional thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
Melt Flow Index |
50±20g/10min ASTMD1238-04 |
Conventional Width | 48cm,50cm,96cm,100cm |
operating Temperature | 130℃-170℃ | Length | 100yards/100meters or it's up on your option |
Flow Beginning Point | 108℃±5℃ | Normal Products Specification | 48cm (width)*100yards(Length) /roll |
1. Glue line temperature and pressure refers to the adhesion strength. Glue line temperature must be measured to receive accurate machine settings.
2. Recommended bonding conditions will vary between different machinery and fabrics. The recommended conditions stated are a starting point only Optimal bonding conditions should be established by the factory for the specific application.
NOTICE: Seller hereby excludes any express warranties and the implied warranties of merchant ability and fitness for a particular purpose. The following is made in lieu of any such warranties. Hunter-Men believes the information supplied are reliable, but does not guarantee that any results shown or claimed will be obtained. Before using the user shall determine the suitability and fitness of the product for its intended use. The user assumes all risks and liability whatever in connection with its own tests and use. Neither seller nor manufacturer shall be liable for any injury, loss or damage, direct or consequential, arising out of the use, misuse or inability to use the product.
Applications:

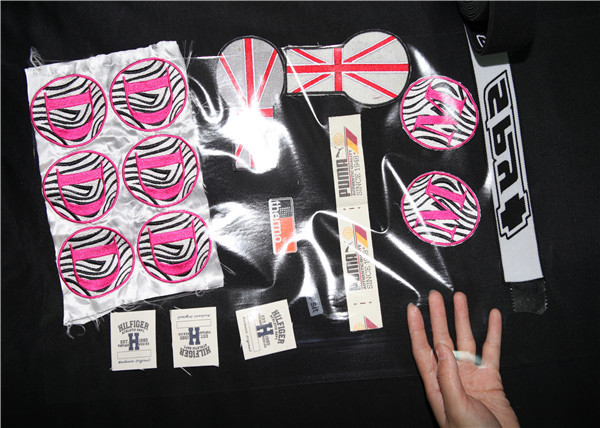

Development direction and application of HT01-20A is for adhesion in garments accessories, footwear, handbags, luggage, embroidery, hot fix and crafts .
Hot Melt Adhesive Film For Weaving Mark | ||||
Type | HT03 | HT01-2000 | HT01 | HT05 |
Color | Milky White | Transparent | Transparent | Transparent |
Bottom Materials | Single Silicon Glassine Release Paper | |||
Melt Point(℃) | 108 | 85 | 100 | 100 |
Pressing Temperature(℃) | 120-160 | 110-150 | 120-170 | 120-160 |
Adhesive Strengh(N/1c㎡) | >80 | >80 | >70 | >80 |
Normal Thickness | 0.06mm,0.08mm,0.1mm, 0.12mm,0.15mm | |||
Normal Specification (width*length) | 50cm*100YDS | 48cm*100YDS | 48cm*100YDS | 48cm*100YDS |
Dry Cleaning | * | NO | NO | *** |
Washable | ||||
40(℃) | *** | *** | *** | *** |
60(℃) | ** | * | NO | ** |
80(℃) | * | NO | NO | * |
1. Clean;
2. Envorentment friendly;
3. High efficiency. In the all process, just need a several seconds.
4. Safety. This product is non-solvent and haven't any hidden trouble in your production.
5. Hot melt adhesive film has better fastness than other glue which could be widely used to laminate many materials;
6. Automatic production can be cometure.
7. Portable and easy operattion
8. Reusable. At the film melting,you can use it again and again.
9. Hot melt adhesive film has good dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as adhesives and sealants;


Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
FAQ
1. What is Hot Melt Adhesive Film?
It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands ,then recommend you right products to you.
2. Do you accept OEM or ODM?
Sure, we accept OEM and ODM. We have over 14-year experience in manufacturing Embroidery Hot Melt Film and Hot Melt Adhesive Films for bonding Reflective Materials, Leather, Embroidery Patches, Badges, Labels, Textile Fabrics, Seamless Underwear, Aluminum Plates, Metal Plates and Stainless Steel Plates.
3. How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way. If you have other better idea about transport, it can be discussed by us.
4. May I have your samples?
If you need samples to testing, please offer us the receiver information( like:address, Email, Telephone Number),and we will arrange samples for you.
Sample is free for 1-3 meters, but you need to pay the Express Fee.
5. How long is the lead time?
For Samples: 3-7 days
For Bulk: 7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept Western Union, L/C, T/T, D/A, D/P,Alibaba.
If you have any other questions, please tell us soon, and we will try our best to offer our better service and products for you.
