Structure: | PO Film + Glassine Paper | Width(mm): | 96cm |
---|---|---|---|
Packing: | 100 Yards Per Roll | Density: | 0.96±0.02g/cm³ |
Melt Flow Index:: | 50±10g/10min ; Condition:ASTMD1238-04 | Melt Point: | 100℃ |
Washable Test: | 40℃/72H | ||
High Light: | 96cm Embroidery Patch Backing Glue,0.96g/cm3 Embroidery Patch Backing Glue,Adhesive Plastic Film 0.96g/cm3 |

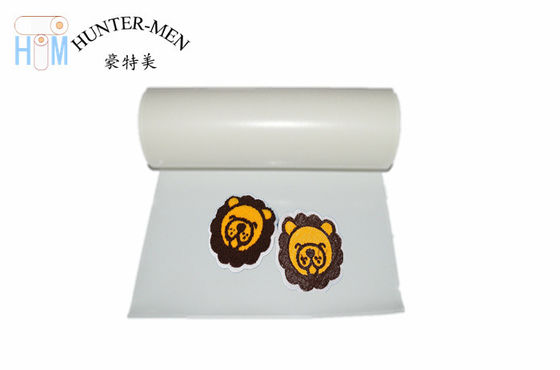

EAA Glue ( Po )Transparent Adhesive Plastic Film For Embroidery Patchs
Description:
The structure of EAA Glue (PO) Transparent Adhesive Plastic Film is PO Film + Glassine Paper, It's suitable for wide range of adherend . It performs an excellent adhesion for fabrics, textiles and cotton. The product is excellent for washability and chemical additives resistant.
Physical Characteristics:
Color | Transparent | Release Liner | Single Silicon Release paper |
Density | 0.96±0.02g/cm³ | Conventional thickness | 50mic,80mic,100mic |
Melt Flow Index |
50±20g/10min ASTMD1238-04 |
Conventional Width | 48cm,50cm,96cm,100cm,150cm |
operating Temperature | 130℃-170℃ | Length | 100yards/100meters or it's up on your option |
Flow Beginning Point | 100℃±5℃ | Normal Products Specification | 48cm (width)*100yards(Length) /roll |
Recommended Bonding Conditions:
First Backing | Second Hot Pressure | ||
Mechanical Mold Temperature | 120℃-150℃ | Mechanical Mold Temperature | 140℃-170℃ |
Hot Pressing Time | 2-3seconds | Hot Pressing Time | 8-15 seconds |
Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
NOTICE: Seller hereby excludes any express warranties and the implied warranties of merchant ability and fitness for a particular purpose. The following is made in lieu of any such warranties. Hunter-Men believes the information supplied are reliable, but does not guarantee that any results shown or claimed will be obtained. Before using the user shall determine the suitability and fitness of the product for its intended use. The user assumes all risks and liability whatever in connection with its own tests and use. Neither seller nor manufacturer shall be liable for any injury, loss or damage, direct or consequential, arising out of the use, misuse or inability to use the product.
Applications:
Development direction and application of HT01-20A is for adhesion in garments accessories, footwear, handbags, luggage, embroidery, hot fix and crafts and so on.
Adhesive Plastic Film For Embroidery Patchs |
||||
Type | HT03 | HT01-2000 | HT01 | HT05 |
Color | Milky White | Transparent | Transparent | Transparent |
Bottom Materials | Single Silicon Glassine Release Paper | |||
Melt Point(℃) | 108 | 85 | 100 | 100 |
Pressing Temperature(℃) | 120-160 | 110-150 | 120-170 | 120-160 |
Adhesive Strengh(N/1c㎡) | >80 | >80 | >70 | >80 |
Normal Thickness | 0.06mm,0.08mm,0.1mm, 0.12mm,0.15mm | |||
Dry Cleaning | * | NO | NO | *** |
Washable | ||||
40(℃) | *** | *** | *** | *** |
60(℃) | ** | * | NO | ** |
80(℃) | * | NO | NO | * |
Deliver Date: 1-5days after confirmed the samples and received the payment
Package:1PC/PE FILM, 100yard/roll, 2roll/CTN, or it's up on the customer's option.
