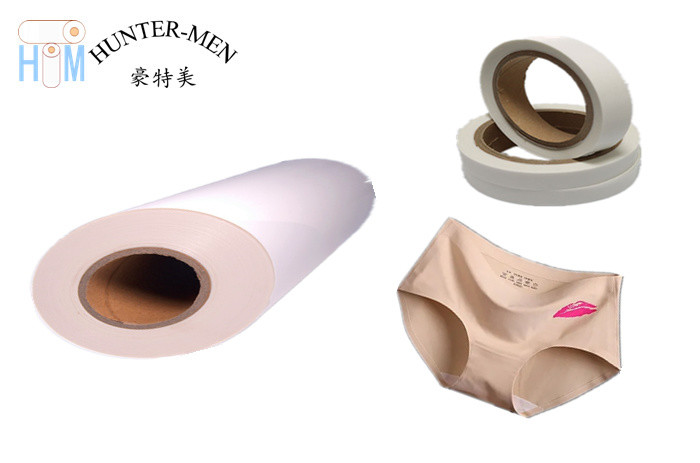

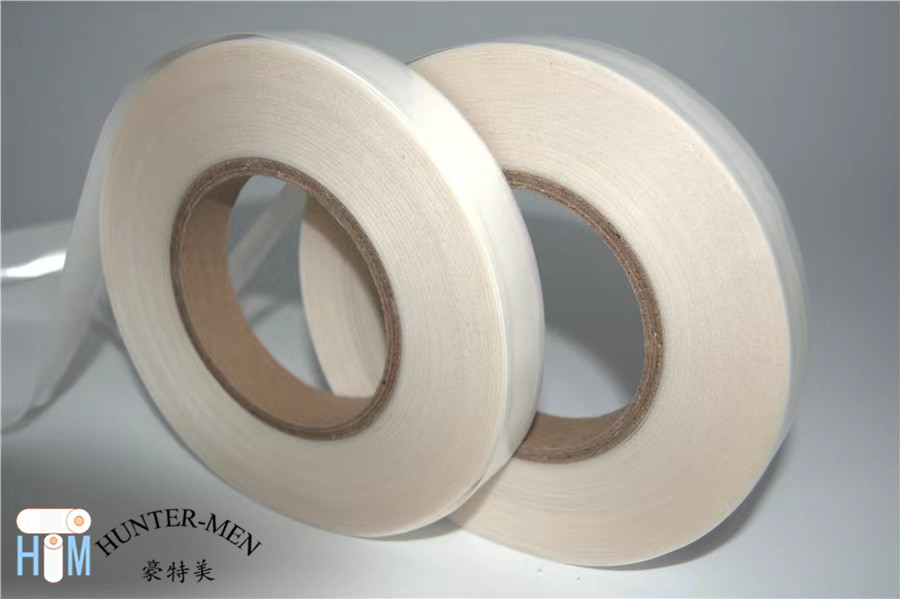

Seamless TPU Thermal Bonding Film Roll For Traceless Elasticity
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hunter Men |
| Certification | ROHS,REACH, ISO9001:2015 |
| Model Number | HT07-40L |
| Minimum Order Quantity | 5000 ㎡ |
| Price | Negotiable |
| Packaging Details | 100meters/Roll and PE bag package,1 rolls in Carton (can be customized) |
| Delivery Time | 3-15 work days (depends on the order quantity) |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P,Alibaba，Paypal |
| Supply Ability | 30000 ㎡ per day |
Product Details
| Main Raw Material | 100% Thermoplastic Polyurethane | Feature | Soften,Springback No Deformation,Washable |
|---|---|---|---|
| Melt Flow Index | 35±5g/10min (Condition:190℃,2.16Kg) | Melt Point | 120℃ |
| Work Temperature | 170-190℃ | Width | 1500mm (can Be Customized) |
| Length | 100 Meters Per Roll (can Be Customized) | Usage | Traceless Elasticity Seamless Briefs Fabrics |
| High Light | TPU Thermal Bonding Film,Seamless Thermal Bonding Film,Thermal Bonding Film with Elasticity |
||
Product Description
TPU Hotmelt Stickness Roll for Traceless Thermal Bonding Elasticity Underwear Fabrics
Model Number:HT07-40L
Description:
HT07-40L is thermoplastic material, suitable for a variety of materials, it can stick to materials after one or more times melt by hot temperature,after hot melting and quickly cold speed feature make it use to various high speed production.It performs an excellent adhesion for Fabrics,Diving Fabrics,Laica,Jersey, other elastic fabrics and so on. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
Operate machine:iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:
| Color | Transparent | Release Liner | Double Silicone Glassine Release paper |
| Density | 1.2±0.02g/cm³ | Conventional thickness | 30mic,50mic,80mic,100mic (can be customized) |
| Melt Flow Index | 35±5g/10min | Conventional Width | 1500mm (can be customized) |
| Hardness (Shore A) | 60A | Length | 100meters(can be customized) |
| Flow Beginning Point | 120℃ | Normal Size /Rolls | 1535mm(width)*100meters(Length) (can be customized) |
Recommended Bonding Conditions:
| First Backing Operate | Second Hot Pressure Operate | ||
| Backing Temperature | 130℃-150℃ | Hot Pressure Temperature | 150℃-190℃ |
| Hot Pressing Speed | 20m/min | Hot Pressure Speed | 15m/min |
| Pressure | 0.5-1.5KG/CM² | Pressure | 0.5-1.5KG/CM² |
Note: Due to the different bonding materials have different heat-shielding performance, the operation parameters in the technical data are only for reference. The specific hot pressing temperature, pressure and time shall be adjusted according to the different bonding materials, operating equipment and process.(Please don’t use steam when you operate by flatiron.)
Package&Storage:
Package:1PC/PE FILM, 100yard/roll, 2 rolls/CTN, or it's up on the customer's option
Storage:Stored in dry unopened packaging at room temperature at least 2 years.
Features&Usages:
It has good resilience, elasticity, heat resistance, cold resistance and water resistance.This adhesive product possesses excellent chemical additives resistant, It main used to composite elastic fabrics to produce can be used as a health-care vest, an underwear, a health-care waistband, kneepads etc.
FAQ:
1. What is Hot Melt Adhesive Film?
It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands ,then recommend you right products to you.
2. Do you accept OEM or ODM?
Sure, we accept OEM and ODM. We have over 14-year experience in manufacturing Embroidery Hot Melt Film and Hot Melt Adhesive Films for bonding Reflective Materials, Leather, Embroidery Patches, Badges, Labels, Textile Fabrics, Seamless Underwear, Aluminum Plates, Metal Plates and Stainless Steel Plates.
3. How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way. If you have other better idea about transport, it can be discussed by us.
4. May I have your samples?
If you need samples to testing, please offer us the receiver information( like:address, Email, Telephone Number),and we will arrange samples for you.
Sample is free for 1-3 meters, but you need to pay the Express Fee.
5. How long is the lead time?
For Samples: 3-7 days
For Bulk: 7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept Western Union, L/C, T/T, D/A, D/P,Alibaba.
