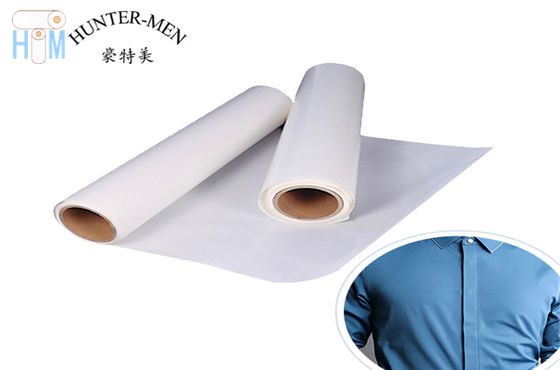

Soft 0.3mm Polyurethane Hot Melt Film For Fabric 100M/ Roll
Place of Origin Shenzhen
Brand Name Hunter Men
Certification SGS,Reach, RoHS,ISO9001:2015
Model Number HT07
Minimum Order Quantity 100 meters
Price Negotiable
Packaging Details 100meters/Roll and PE bag package,1 rolls in Carton
Delivery Time 1-15 work days
Payment Terms Western Union, T/T, D/A, D/P,Alibaba,Paypal
Supply Ability 300rolls per day
Product Details
Raw Material Polyurethane(TPU) Color Transparent
Thickness(mic) 50mic Width(mm) 1535cm
Length(Yards) 100meters/Roll Proportion 1.2g/cm³
High Light

0.3mm Polyurethane Hot Melt Film

,

Polyurethane Hot Melt Film For Fabric

,

Hot Melt Film For Fabric 100M/ Roll

Product Description

Thickness Range 0.01mm-0.3mm Soft Polyurethane Hot Melt Adhesive Film For Clothing Placket



Description:

Polyurethane Hot Melt Adhesive Film is a thermoplastic adhesive product , the raw material is ployester, the structure is polyurethane film + release paper,it is suitable for wide range of adherend. It can be repeatedly heated for bonding. This adhesive product possesses excellent washability and chemical additives resistant.



Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.

Soft 0.3mm Polyurethane Hot Melt Film For Fabric 100M/ Roll 0

Soft 0.3mm Polyurethane Hot Melt Film For Fabric 100M/ Roll 1



Physical Characteristics:



Color Transparent Release Liner  Release paper
Density 1.2g/cm³ Conventional thickness 30mic,50mic,80mic,100mic,150mic
Melt Flow Index(Condition:ASTMD1238-04)

20g/10min

Conventional Width 153cm
Hardness (Shore A) 73±2A Length 100meters
Melt Point 120℃ Normal Size /Rolls

153cm(width)*100meters(Length) or as your demands



Remarks:The above information and technical support are based on our current knowledgeand experience.They are witout guarantee and legal claim.To obtain the best processing conditions, we suggest customers test the samples before using our products



Conventional Specification:


0.03MM*153CM*100meters
0.05MM*153CM*100meters

0.08MM*153CM*100meters

0.10MM*153CM*100meters



We support Customization:



Width Range

5-1500mm

Length Range

100yards-1000yards per roll or as your demands

Thickness Range

10MIC-300MIC

We can tailor hot melt film as your business and demands.



Applications:



It has good resilience, elasticity, heat resistance, cold resistance and water resistance.This adhesive product possesses excellent chemical additives resistant, It main used to composite elastic fabrics to produce can be used as a health-care vest, an underwear, a health-care waistband, kneepads etc.

Soft 0.3mm Polyurethane Hot Melt Film For Fabric 100M/ Roll 2

Soft 0.3mm Polyurethane Hot Melt Film For Fabric 100M/ Roll 3



Hot Melt Adhesive Film's Advantages:


1. Clean;
2. Envorentment friendly;
3. High efficiency. In the all process, just need a several seconds.
4. Safety. This product is non-solvent and haven't any hidden trouble in your production.
5. Hot melt adhesive film has better fastness than other glue which could be widely used to laminate many materials;
6. Automatic production can be cometure.
7. Portable and easy operattion
8. Reusable. At the film melting,you can use it again and again.
9. Hot melt adhesive film has good dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as adhesives and sealants;





How to Use:

Hot melt adhesive film is usually processed by iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot pressure machine.The processing structure have two layers of material, three layers of materials or more layers.


Two Layers :

Transparent Polyurethane TPU Hot Melt Adhesive Film 82A Hardness For PU Fabric SBR Diving Materil 2



Three Layers :

Transparent Polyurethane TPU Hot Melt Adhesive Film 82A Hardness For PU Fabric SBR Diving Materil 3



Packaging Details:



Packaging 1PC/PE FILM, 100meters/roll, 1 rolls/CTN, or it's up on the customer's option
Storage Conditions Stored in dry unopened packaging at room temperature at least 2 years.



Soft 0.3mm Polyurethane Hot Melt Film For Fabric 100M/ Roll 6





About Us:



Ecofriendly 60mic Transparent Hot Melt Adheisve Film For Toothbrush Badge Embroidery Label 3 Shenzhen CIty Hunter-Men Plastics Products CO.,LTD as a professional manufaturer was established in 2013, with rich experience specializing in R&D and producting all kinds of hot melt adhesive products. Owing varied production machines to match custom demands. Mainly Markets are Europe, America, South Asia, South Africa and so on.

Our factory has passed ISO9001:2015 quality control certification system.
The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film.
Ecofriendly 60mic Transparent Hot Melt Adheisve Film For Toothbrush Badge Embroidery Label 4 Ecofriendly 60mic Transparent Hot Melt Adheisve Film For Toothbrush Badge Embroidery Label 5 Ecofriendly 60mic Transparent Hot Melt Adheisve Film For Toothbrush Badge Embroidery Label 6 Ecofriendly 60mic Transparent Hot Melt Adheisve Film For Toothbrush Badge Embroidery Label 7 Ecofriendly 60mic Transparent Hot Melt Adheisve Film For Toothbrush Badge Embroidery Label 8
Film Casting Machine Film Coating Machine Film&Tape Slitting machine Fully Automatism Number Control Slitter Fully Automatism Number Control Guillotine



Quality Control:

Ecofriendly Thermoplastic Hot Melt Adhesive Film For Bonding UV Plating and Genuine Leather 9 Ecofriendly Thermoplastic Hot Melt Adhesive Film For Bonding UV Plating and Genuine Leather 10 Ecofriendly Thermoplastic Hot Melt Adhesive Film For Bonding UV Plating and Genuine Leather 11



Soft 0.3mm Polyurethane Hot Melt Film For Fabric 100M/ Roll 16



Support Customization Production:



We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.



1. According to the Film Performance:



Melt Point: 70-110℃,

Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),

Thickness:0.05mm-1mm,

Width: 5mm-1500mm,

Length:1M-1000M/roll,

Colors:All of colors



2.According to the Base material:



A. Single/Double side silicone glassine release paper,

B. Single/Double side silicone kraft release paper,

C. Single/Double side silicone PE coated paper,

D. Matte / Glossy PP paper,

E. Matte / Glossy Pearlescent paper,

F. Single/Double side silicone PET release film,

G. Without base materials

H. You also can choose the base materials thickness and grammage.



3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)

A.Conventional Aperture:1.4mm,1.5mm,1.8mm

B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm

Milky Translucent 0.03mm Thickness Polyurethane Hot Melt Glue Film For Composite Leater or Textlie Fabrics 11

We can tailor hot melt film as your business and demands.



FAQ:

Q1) . What is hot melt adhesive film?

A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,

Q2).Do you accept OEM or ODM?

Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,

Q3).How do you ship the products?

If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,

Q4). Do you provide free sample? And how many days it will take?

Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,

Q5). How long is the lead time?

Sample lead time: 1-3 days

Bulk lead time: 7-20days(depends on order quantity),

Q6). How do I pay for my order?

We usually accept L/C ,T/T ,Western Union , Paypal.
