Mr.Sergey AbayevGood service and fast shipping.
-
Mr.HoqueLily,I am really happy with the film. Good quality with competitive price. Thank you very much for your sincere service.
-
Mr.HernanLily, I received your goods,it is very good. And thanks for your nice coorperation!
Place of Origin | Shenzhen,China |
---|---|
Brand Name | Hunter Men |
Certification | Reach, RoHS,ISO9001:2015 |
Model Number | HT07 |
Minimum Order Quantity | 100 meters |
Price | Negotiable |
Packaging Details | 100meters/Roll and PE bag package,1 rolls in Carton |
Delivery Time | 1-15 work days |
Payment Terms | Western Union,T/T,D/A,D/P,Alibaba,Paypal |
Supply Ability | 300rolls per day |
Features | Elasticity, Heat,Cold And Water Resistance | Raw Material | Polyurethane(TPU) |
---|---|---|---|
Color | Transparent | Thickness(0.05mm) | 0.1mm |
Width(cm) | 150cm | Length(Meters) | 150yards/Roll |

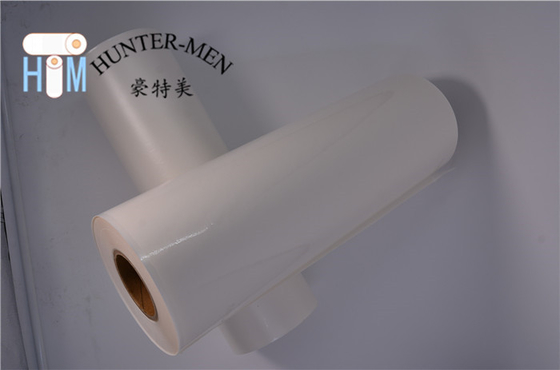

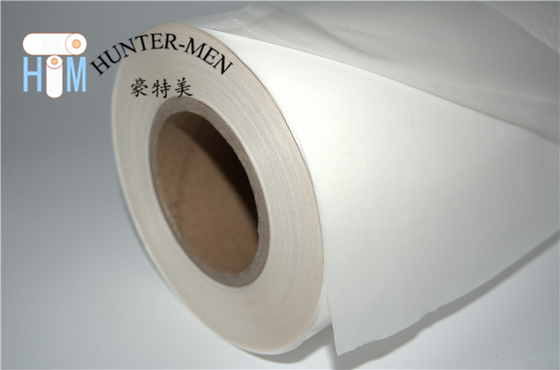

With Backing Paper Polyurethane Hot Melt Adhesive Tpu Film 0.1mm Thickness Stick Fabric
Description:
Polyurethane Hot Melt Adhesive TPU Film is a thermoplastic adhesive product , the raw material is polyurethane, the structure is polyurethane film + release paper,it is suitable for wide range of adherend. It can be repeatedly heated for bonding. This adhesive product possesses excellent washability and chemical additives resistant.
Features | Resilience |
Elasticity | |
Heat Resistance | |
Cold Resistance | |
Water Resistance | |
Chemical Additives Resistant |
Application:
It main used to composite elastic fabrics to produce can be used as a health-care vest, an underwear, a health-care waistband, kneepads etc.
Physical Characteristics:
Color | Transparent | Release Liner | Release paper |
Density | 1.2g/cm³ | Conventional thickness |
0.01mm,0.02mm,0.03mm, 0.05mm,0.08mm,0.1mm |
Melt Flow Index (Condition:ASTMD1238-04) |
20g/10min |
Conventional Width | 150cm and support customized |
Hardness (Shore A) | 73±2A | Length | 100meters and support customized |
Melt Point | 120℃ | Normal Size /Rolls |
150cm(width)*100meters(Length) and support customized |
Conventional Specification: (Thickness*Width*Length) |
0.03MM*150CM*100meters | ||
0.05MM*150CM*100meters | |||
0.08MM*150CM*100meters | |||
0.10MM*150CM*100meters |
Remarks:The above information and technical support are based on our current knowledgeand experience.They are witout guarantee and legal claim.To obtain the best processing conditions, we suggest customers test the samples before using our product
How to Use:
Hot melt glue is usually made of iron or other hot bonding equipment. The processing structure have two layers of material, three layers of materials.
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
May You Interesting:
Polyurethane Hot Melt Adhesive Tpu Film Stick Fabric |
|||
Type | HT07-66 | HT07-60L | HT07-40L |
Color | Transparent | Transparent | Transparent |
Bottom Materials | Silicon Glassine Release Paper | ||
Melt Point(℃) | 108 | 95 | 100 |
Pressing Temperature(℃) | 130-170 | 130-160 | 130-180 |
Adhesive Strengh(N/1c㎡) | >80 | >80 | >70 |
Normal Thickness | 0.01mm,0.02mm,0.03mm,0.05mm,0.08mm,0.1mm | ||
Normal Specification (width*length) | 150cm*100Meters | 150cm*100Meters | 150cm*100Meters |
Dry Cleaning | * | * | * |
Washable | |||
40(℃) | *** | *** | *** |
60(℃) | ** | * | NO |
80(℃) | * | NO | * |
