Product Details:
Payment & Shipping Terms:
|
| Main Raw Material: | PO | Substrate Material: | Release Paper |
|---|---|---|---|
| Appearance: | Transparent | Usage: | Embroidery Patch Hot Melt Backing Gum |
| Melting Point: | 85℃ | Processing Temperature: | 130-170℃ |
| Processing Time: | 5-20s | G.W: | 8kg |
| High Light: | PO Hot Melt Glue Sheets,120mic Thickness Hot Melt Glue Sheets,Embroidery Patches Hot Melt Glue Sheets |
||

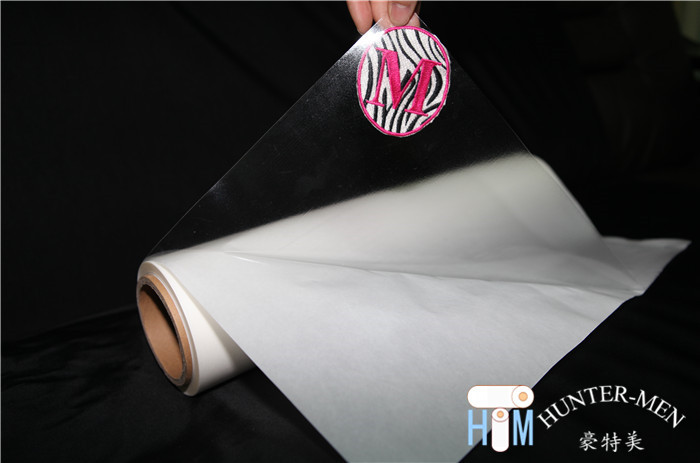

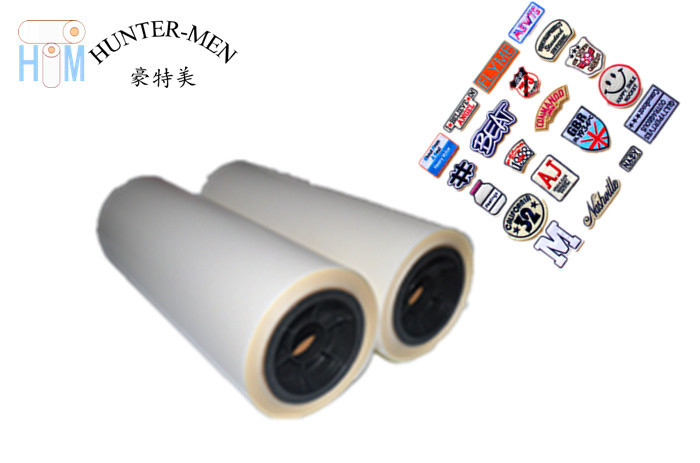

PO Hot Melt Glue Sheets 120mic Thickness Embroidery Patches Hot Backing Gum
Description:
PO Hot melt Glue Sheets is us using the high precision coating machine to coating the melting raw materials well-distributed into the release paper, and the thin film colors is transparent.It is usually used to bonding apperals and embroidery patch industies. But It is also widely usd to bonding cottons, leathers, woods, papers, aluminum and other metarils. At the same time, it still have good washable.
Physical Characteristics:
| Color | Transparent | Release Liner | Glassine release paper |
| Density | 1.2±0.02g/cm³ | Conventional thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm |
| Melt Flow Index |
32±5g/10min ASTMD1238-04 |
Conventional Width | 48cm,50cm,96cm,100cm,150cm |
| operating Temperature | 120℃-160℃ | Length | 100yards/100meters or it's up on your option. |
| Flow Beginning Point | 108℃±5℃ | Normal Products Specification | 48cm (width)*100yards(Length) /roll |
| Recommended Bonding Conditions | |||
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 120℃-130℃ | Mechanical Mold Temperature | 140℃-160℃ |
| Hot Pressing Time | 3-5 seconds | Hot Pressing Time | 8-15 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
Others Suggestions:
| Hot Melt Adhesive Film For Embroidery Patch | ||
| Type | HT03 | HT01-2000 |
| Color | Milky White | Transparent |
| Bottom Materials | Single Silicon Glassine Release Paper | |
| Melt Point(℃) | 108 | 85 |
| Pressing Temperature(℃) | 120-160 | 110-150 |
| Adhesive Strengh(N/1c㎡) | >80 | >80 |
| Normal Thickness | 0.06mm,0.08mm,0.1mm, 0.12mm,0.15mm,0.18mm | |
| Normal Specification (width*length) | 50cm*100YDS | 48cm*100YDS |
| Washable | ||
| 40(℃) | *** | *** |
| 60(℃) | ** | * |
| 80(℃) | * | NO |
