Place of Origin | China |
---|---|
Brand Name | Hunter Men |
Certification | SGS,ISO9001:2015 |
Model Number | HT01-2000 |
Minimum Order Quantity | 100yards |
Price | $31.40 |
Packaging Details | 1 to 4 rolls /CTN, 1 PE bags per rolls or it's up on your option. |
Delivery Time | 1-3 days |
Payment Terms | Western Union, T/T, D/P, D/A |
Supply Ability | 200 rolls per day |
Main Raw Material | EAA | Substrate Material | Release Paper |
---|---|---|---|
Appearance | Transparent | Usage | Bonding Embroidery Patches To Hat |
Melting Point | 85℃ | Processing Temperature | 120-150℃ |
Processing Time | 5-20s | ||
High Light | EAA Hot Melt Glue Sheets,Hat Patches Hot Melt Glue Sheets,Bonding Embroidery Hot Melt Glue Sheets |

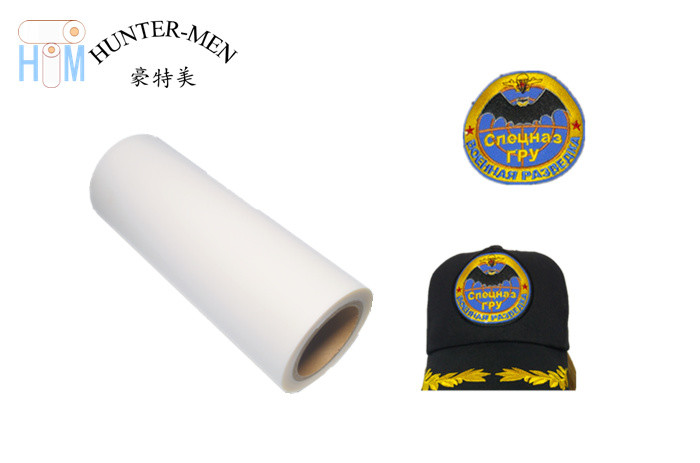

Hot Melt Glue Sheets Hot Melt Adhesive Film For Bonding Embroidery Patches to Hat
Description:
Hot melt Glue Sheets is us through the high precision coating machine to coating the melting raw materials well-distributed into the release paper, and the thin film color is transparent.It is usually used to bonding apperals and embroidery patch industies. But It is also widely usd to bonding cottons, woods, papers, aluminum and other metarils. It can resistant 40℃ washing.
Physical Characteristics:
Color | Transparent | Release Liner | Glassine release paper |
Density | 0.92±0.02g/cm³ | Conventional thickness | 0.06mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
Melt Flow Index |
32±5g/10min ASTMD1238-04 |
Conventional Width | 48cm,50cm,96cm,100cm,150cm |
operating Temperature | 120℃-160℃ | Length | 100yards/100meters or it's up on your option. |
Flow Beginning Point | 110℃±5℃ | Normal Products Specification | 48cm (width)*100yards(Length) /roll |
Recommended Bonding Conditions | |||
First Lamination | Second Implanting | ||
Mechanical Mold Temperature | 120℃-130℃ | Mechanical Mold Temperature | 140℃-160℃ |
Hot Pressing Time | 3-5 seconds | Hot Pressing Time | 8-15 seconds |
Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
Operate machine :
Usually by iron,hot pressing machine or other hot composite machine.
Others Suggestions:
Bonding Embroidery Patches to Hat | ||
Type | HT03 | HT01-2000 |
Color | Milky White | Transparent |
Bottom Materials | Single Silicon Glassine Release Paper | |
Melt Point(℃) | 108 | 85 |
Pressing Temperature(℃) | 120-160 | 110-150 |
Adhesive Strengh(N/1c㎡) | >80 | >80 |
Normal Thickness | 0.06mm,0.08mm,0.1mm, 0.12mm,0.15mm,0.18mm | |
Normal Specification (width*length) | 50cm*100YDS | 48cm*100YDS |
Washable | ||
40(℃) | *** | *** |
60(℃) | ** | * |
80(℃) | * | NO |
1. Q: How to pack the product?
A: Our goods are packed by cartons, usually 2 or 4 rolls per carton, and 1 roll per PE bags, 25 cartons per pallet, pallet side with stretch film , or we are able to packed as your demands.
2. Q: How many rolls can be full fitted into one container, such as 20FT, 40FT?
A: Due to the goods has many specifications, so the package is different, we need confirm which products is you want, then we will calculate for you accordingly.
3. Q: How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, but different materials hot melt adhesive film have different performances and different usages, we need understand your demands, and then offer fit hot melt adhesive film for you.
4. Q: Do you accept OEM/ODM?
A: Yes, we do. By the way, we have a technical team, they have rich experience, able to help you R&D new products. So if you need bonding some special materials, please don’t hesitated to contact us.
5. Q: Do you provide free sample?How many days it will spend?
A: Yes, we provide free sample, but you need to pay the courier charge. And we will arrange the samples for you 1 to 3 workdays and it will take 3 to 7days on the transportation.
6. Q: What’s your delivery time?
A: We are factory, so we can efficiently control the production time. But we will produce well all of goods for you ASAP when we received your deposit, usually is 5 to 15 workdays.
7. Q: How to test the goods quality?
A: Firstly, before we received your order, you must have test our sample, then we will arrange produce according you confirmed sample.
Secondly, before shipment, we will send the production sample to you or if you convenience, you can watch the goods in our factory.
Thirdly, when you watched the sample, you are able to use same way to test the production sample.
8. Q: What’s your production capacity?
A: At present, our production capacity is 20,000 YDS per days. However, we are planning to open a new factory and add more production lines.
9. Q: What’s your payment term?
A: We accept T/T, L/C, Western Union, Paypal, Escrow, or customized if it is acceptable.
10. Q: How do you transport the product?
A: If you are not urgent, we usually transport by ship as it is the cheapest way. But for the West Asia area, we deliver by train as there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way. Of course if you have better idea about transport, we will consider.
