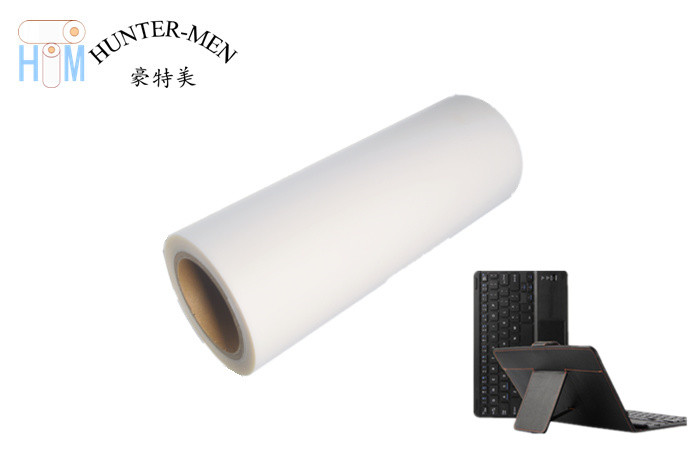

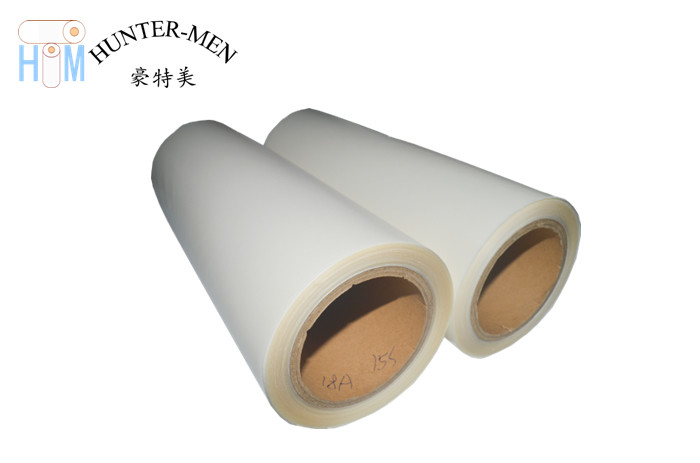

80mic TPU Hot Melt Adhesive Film
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hunter Men |
| Certification | SGS,ISO9001 |
| Model Number | HT08-90THZ |
| Minimum Order Quantity | 50 rolls |
| Price | Negotiable |
| Packaging Details | 200 Yards/Roll,1 rolls in Carton |
| Delivery Time | 1-15 work days |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P,Alibaba，Paypal |
| Supply Ability | 300rolls per day |
Product Details
| Melt Flow Index | 35±5g/10min（Condition:ASTMD1238-04） | Hardness | 97A(Shore A) |
|---|---|---|---|
| Melt Point | 60℃ | Operate Temperature | 90-130℃ |
| Thickness(mic) | 80mic | Width(mm) | 142cm |
| Length(Yards) | 200 Yards/Roll | Finished Product | 142cm*200yards/roll Or As Your Demands |
| High Light | Polyurethane Hot Melt Adhesive Film,80mic TPU Hot Melt Adhesive Film,97A tpu film laminate |
||
Product Description
TPU Polyurethane Hot Melt Adhesive Film For Electronic Products Protctive Case
Model Number:HT08-90THZ
Description:
HT08-90THZ is thermoplastic material, suitable for a variety of materials, it can be heat plasticized adhesive repeated. It have good adhesion for textile, polyester, cotton, blended fabric, TPU, PVC, PC / ABS, and has good resilience, heat resistance, cold resistance.This adhesive product possesses excellent chemical additives resistant.
Structure: Release Paper(Base Material)+TPU film (Hot Melt AdheSive Film)
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:
| Color | Milky White | Release Liner | Glassine Release paper |
| Density | 1.18±0.05g/cm³ | Conventional thickness | 80mic |
| Melt Flow Index |
35±5g/10min |
Conventional Width | 142cm |
| Hardness (Shore A) | 96±2A | Length | 200yards |
| Melt Point | 60℃ | Normal Size /Rolls |
142cm(width)*200yards(Length) |
Recommended Bonding Conditions:
| First Backing Operate | Second Hot Pressure Operate | ||
| Backing Temperature | 90℃-120℃ | Hot Pressure Temperature | 110℃-130℃ |
| Hot Pressing Time | 1-5seconds | Hot Pressure Time | 5-15seconds |
| Pressure | 0.5-1.5KG/CM² | Pressure | 0.5-1.5KG/CM² |
Remarks:The above information and technical support are besed on our current knowledge and experience.They are without guranteen and legal cliam.To obtain the test processing conditions,we suggest you test the samples before using it.
Applications:
HT08-90THZ widely applied in TPU and leather lamination,moblie phone case, earphone case,metals,automobile trims,Ic card sealing, PVC lamination etc.
|
||
|
|
|
How to Use:
Hot melt adhesive film is usually processed by iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot pressure machine.
Packaging Details:
1PC/PE FILM, 100yard/roll, 2 rolls/CTN, or it's up on the customer's option
Delivery Detail:
Shipped in 3-15 days after payment
About Us:
|
Shenzhen CIty Hunter-Men Plastics Products CO.,LTD as a professional manufaturer was established in 2013, with rich experience specializing in R&D and producting all kinds of hot melt adhesive products. Owing varied production machines to match custom demands. Mainly Markets are Europe, America, South Asia, South Africa and so on. Our factory has passed ISO9001:2015 quality control certification system. The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film. |
|||
|
|
|
|
|
| Film Casting Machine | Film Coating Machine | Film&Tape Slitting machine | Fully Automatism Number Control Slitter | Fully Automatism Number Control Guillotine |
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
Melt Point: 70-110℃,
Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
Thickness:0.05mm-1mm,
Width: 5mm-1500mm,
Length:1M-1000M/roll,
Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
Why Choose Us:
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
We can tailor hot melt film as your business and demands.
FAQ:
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
Contact me:
Lily
What'sapp & Wechat: +8615817445470
Tel: +8615817445470 Email: lily@szhotmelt.com
If you have any other questions, please tell us soon, and we will try our best to offer our better service and products for you.
