|Structure:||TPU + Glassine Release Paper||Color:||Milky Translucent|
|Proportion:||1.18±0.02g/cm³||Melt Flow Index::||25±5g/10min（Condition:ASTMD1238-04）|
|Melt Point:||90℃||Operate Temperature:||100-160℃|
|Length(Yards):||100 Yards Per Roll Or As Your Demands||Normal Size:||140cm*100yards Per Roll|
140cm TPU Film Laminate,
Milky Translucent TPU Film Laminate,
140cm polyurethane film adhesive

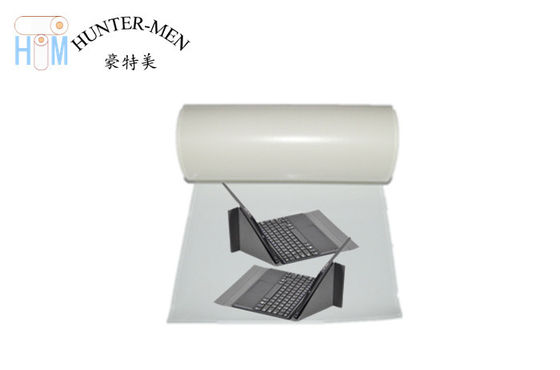

Milky Translucent Resistance 24Hours Low and High Temperature Cyclic Test TPU Adhesive Plastic Film For Phone Case
HT02-08 is thermoplastic material,it can be heat plasticized adhesive repeated. It has excellent adhesion for textile, polyester, cotton, blended fabric, TPU,PVC,PC,ABS and has good resilience, elasticity, heat resistance, cold resistance and water resistance.HT02-08 possesses excellent chemical additives resistant, and it can resist 24hour -20℃ to + 70℃ cyclic test.
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
|Color||Milky Translucent||Release Liner||Glassine Release paper|
|Melt Flow Index||
|Hardness (Shore A)||96A||Length||100yards|
|Melt Point||90℃||Normal Size /Rolls||
Recommended Bonding Conditions:
|First Backing Operate||Second Hot Pressure Operate|
|Backing Temperature||100℃-120℃||Hot Pressure Temperature||120℃-160℃|
|Hot Pressing Time||1-5seconds||Hot Pressure Time||5-15seconds|
HT02-08 widely applied in TPU and leather lamination,moblie phone case, metals,automobile trims,Ic card sealing, PVC lamination etc.
How to Use:
Hot melt adhesive film is usually processed by iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot pressure machine.The processing structure have two layers of material, three layers of materials or more layers.
Two Layers :
Three Layers :
1PC/PE FILM, 100yard/roll, 2 rolls/CTN, or it's up on the customer's option
Shipped in 1-15 days after payment
|Shenzhen CIty Hunter-Men Plastics Products CO.,LTD as a professional manufaturer was established in 2013, with rich experience specializing in R&D and producting all kinds of hot melt adhesive products. Owing varied production machines to match custom demands. Mainly Markets are Europe, America, South Asia, South Africa and so on.
Our factory has passed ISO9001:2015 quality control certification system.
The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film.
|Film Casting Machine||Film Coating Machine||Film&Tape Slitting machine||Fully Automatism Number Control Slitter||Fully Automatism Number Control Guillotine|
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
Melt Point: 70-110℃,
Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
We can tailor hot melt film as your business and demands.
