Payment & Shipping Terms:
|Hardness:||73±2（Shore A）||Washable Test:||60℃/72H|
150cm Width Hot Melt Glue Film,
Hot Melt Glue Film 1.2g/Cm3,
1.2g/Cm3 hot melt glue sheets

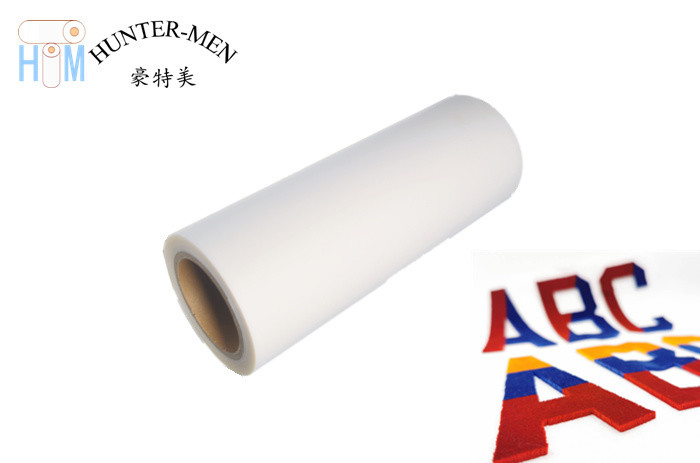

1.2±0.02g/cm³ Hight Elastic Soft 150cm Width Resist 60℃ Washing Hot Melt Glue film For Toothbrush Patches

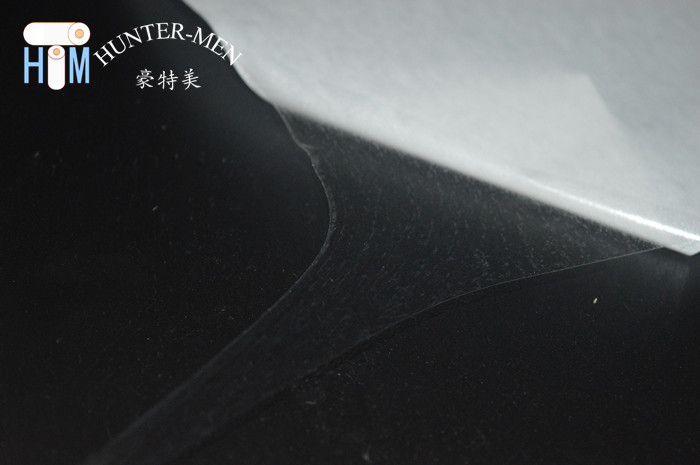

It is a transparent thermoplastic materials that with release paper, it can stick to materials after one or more times melt by hot temperature,after hot melting and quickly cold speed feature make it use to various high speed production.It performs an excellent adhesion for fabrics, textiles, cotton etc. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
Operate machine :iron,hot pressing machine or other hot composite machine.
|Color||Transparent||Release Liner||Silicone Glassine Release paper|
|Melt Flow Index||10-25g/10min||Conventional Width||100cm,150cm|
|Hard (Shore A)||73±2A||Length||150yards|
|Flow Beginning Point||95℃||Normal Size /Rolls||150cm(width)*150yards(Length)|
Recommended Bonding Conditions:
|First Backing Operate||Second Hot Pressure Operate|
|Hot Pressing Temperature||140℃-160℃||Hot Pressing Temperature||140℃-160℃|
|Hot Pressing||1-5seconds||Hot Pressing Time||5-20 seconds|
Note: Due to the different bonding materials have different heat-shielding performance, the operation parameters in the technical data are only for reference. The specific hot pressing temperature, pressure and time shall be adjusted according to the different bonding materials, operating equipment and process.(Please don’t use steam when you operate by flatiron.)
HT07-60L can be used in the back of the toothbrush embroidery patches, in order to prevent broken embroidry thread lead to demaged embroidery patches patches.
May You Interesting:
|TPU Hot Melt Adhesive Film|
|Color||transparent||transparent||milky translucent||milky translucent|
|Bottom Materials||Double Silicon Glassine Release Paper||Single Silicon Glassine Release Paper|
|Melt Index||8g/10min 190(℃)2.16kg||30g/10min 190(℃)2.16kg||40g/10min 190(℃)2.16kg||20g/10min 190(℃)2.16kg|
|Feature||very soft, good elasticity and stickiness||very soft, good elasticity and stickiness, long time non-yellowing||lower work temperature,good stickiness,widely adhesion arange.||lower work temperature,good stickiness,widely adhesion arange.|
|Shenzhen CIty Hunter-Men Plastics Products CO.,LTD as a professional manufaturer was established in 2013, with rich experience specializing in R&D and producting all kinds of hot melt adhesive products. Owing varied production machines to match custom demands. Mainly Markets are Europe, America, South Asia, South Africa and so on.
Our factory has passed ISO9001:2015 quality control certification system.
The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film.
|Film Casting Machine||Film Coating Machine||Film&Tape Slitting machine||Fully Automatism Number Control Slitter||Fully Automatism Number Control Guillotine|
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
Melt Point: 70-110℃,
Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
We can tailor hot melt film as your business and demands.
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
