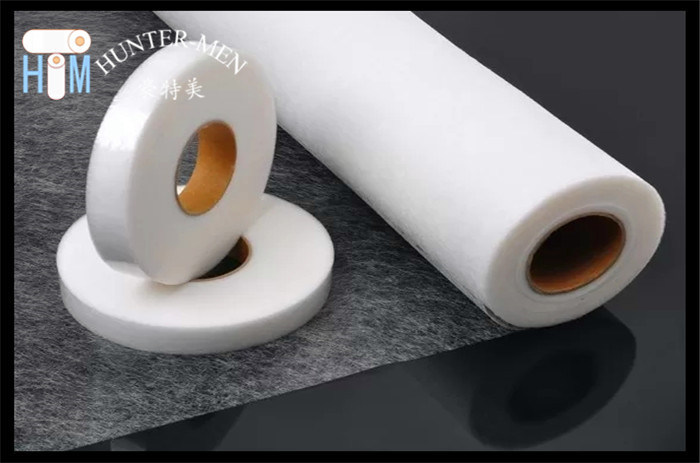

23G/M2 PES Hot Melt Adhesive Web 1500mm Fusible Bonding Web
| Place of Origin | Shenzhen,Guangdong Province,China |
|---|---|
| Brand Name | Hunter Men |
| Certification | REACH,ROHS,ISO9001 |
| Model Number | HT03-23 |
| Minimum Order Quantity | 200 yards |
| Price | Negotiable |
| Packaging Details | 2 or 4 rolls /CTN, 1 PE bags/rolls or it's up on your option. |
| Delivery Time | 1-15work days |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P,Alibaba |
| Supply Ability | 1500rolls per Week |
Product Details
| Composition | Co-polyester | Appearance Form | White Omentum |
|---|---|---|---|
| Melting Point(°C) | 95-120℃ | Press Temperature | 140℃ |
| Washing | 40℃ | Gram Weight | 23G |
| Width(mm) | 1500mm | Packing | 200yards Per Roll |
| High Light | 23G/M2 PES Hot Melt Adhesive Web,1500mm Fusible Bonding Web,PES Hot Melt Adhesive Web 1500mm |
||
Product Description
23G/㎡ PES Hot Melt Adhesive Web For Lanimation Fabric and Foam
Description:
The product features are good flexibility,good air-permeability,soft feeling and high stripping strength,excellent resistance to washing,environment friendly.
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
| Property | Criterion | |
| Appearance | White web film | |
| Composition | Copolyamide | |
| Density | 1.1±0.02g/cm3 | |
| Melting Range | 115-135℃ | |
| Bonding Conditions | Temperature | 130-150℃ |
| Pressure | 1.0-2.5kgf/cm2 | |
| Time | 10-15S | |
| Washable Property | 40℃ | Excellent |
| 60℃ | Good | |
| Dry Cleaning Performance | Excellent |
|
NOTICE:
1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.
1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.
Specification:
| Width range | 10-3200mm |
| Length range | 100yards-500yards per roll |
| Gram Weight range | 7g-80g/㎡ |
Applications:
- Automotive lnterior(Roof/Head-liner,Seat cover,Cushion Sun Visor,Thermal &Acoustic lnsulation material,Air Filter,Carpet,etc.)
- Home Textiles(Curtains,Tablecloths,Bedspreads,Mattresses,Pillowcases,etc.)
- Garment & Luggage industry(Gloves,Bags,Fabrics,Artificial Leather,Shoe Materials,Luggage Lining,lntermediate lining and Supporting Materials,Clothing linings,Warm Wadding,Outerwear,Underwear,etc.)
- Medical Non-woven Fabrics(Surgical Gown,Caps,Masks,Mattresses,Bactericidal Curtains,Wet Towels,etc.)
- Furniture (Wood &Plywood Lamination,Cardboard,Fiber Splint,Fabric & Foam Lamination)
- Sound & Thermal lnsulation (multi-layer FRP Fabric,Metal Panel,Aluminum Foil Material,Various Foams)
- Filter Materials (Air Filter,Activated Carbon Non-woven,Activated Carbon Cotton,Activated Carbon Mask,Activated Carbon Filter,etc.)
Usage Method:
Hot Melt Adhesive Web is usually made of iron or other hot bonding equipment. The processing structure have two layers of material, three layers of materials.
| Temperature | 140℃ |
| Time | 1-10seconds |
| Pressure | 0.6mpa |
Double layers :
Three layers :
Packaging Details:
| Packaging | 1PC/PE FILM, 200yard/roll or it's up on the customer's option |
| Storage Conditions | Stored in dry unopened packaging at room temperature at least 2 years. |
Delivery Detail:
Shipped in 3-15 days after payment
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
A.Melt Point: 70-110℃,
B.Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
C.Thickness:0.05mm-1mm,
D.Width: 5mm-1500mm,
E.Length:1M-1000M/roll,
F.Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)
A.Conventional Aperture:1.4mm,1.5mm,1.8mm
B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm
FAQ:
1 . How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point,it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands,then recommend you right products to you.
2. Do you accept OEM or ODM?
Yes ,we accept OEM and ODM,we are professional heat transfer material manufacturer ,having more than 10years experience.able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us konw.
3. How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way.Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference,please let us know your fully address/ship
mode with courier,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept L/C ,T/T ,Western Union , Paypal
Why choose us
1. Quality control and stability: Applied with high quality,each product is produced under strict quality control at every manufacturing process from raw materials to final testing, which ensures our products come with perfect performance on appearance and consistency.
2.Reasonable price: We frequently strive to offer better, flexible and win-win price.
3. Fast delivery. We will ship out your order within 1-2 business days after verification of the payment and confirmation of the order.If out of stock,we will inform you in advance.
4. Premium custom service: Fast response within 24hours. Over 10 years of experience in customer service, problem solving, marketing and logistic delivery, Team support from professional sales team.
5. Our aims:High quality, low price,fast delivery and good service.
6. Be faithful, responsible, honest and sincere to our client, keep our promise.
Choose Us! Win-win Situation!
