1.2g/Cm3 Hot Melt Glue Film 100 Yard / Roll Glue Film Adhesive
Place of Origin Shenzhen
Brand Name Hunter Men
Certification SGS,ISO9001:2015
Model Number HT01-4000YM
Minimum Order Quantity 100 Yard/Yards
Price Negotiable
Packaging Details 2 rolls /carton, 1 PE bags/rolls or as you demands.
Delivery Time 5-7days
Payment Terms Western Union, L/C, D/A, D/P, T/T,Paypal
Supply Ability 300 Rolls/ Day
Product Details
Port Shenzhen Raw Materals Acrylic Pressure Sensitive Hot Melt Film
Substrate Material Release Paper Or Release Paper Color Transparent
Thickness (mm) 0.28MM Width(mm) 100CM
Hot Pressing Temperature(°C) 100-130℃ Processing Time(seconds) 3-8 Seconds
High Light

1.2g/Cm3 Hot Melt Glue Film


100 Yard / Roll Glue Film Adhesive


1.2g/Cm3 Glue Film Adhesive

Product Description

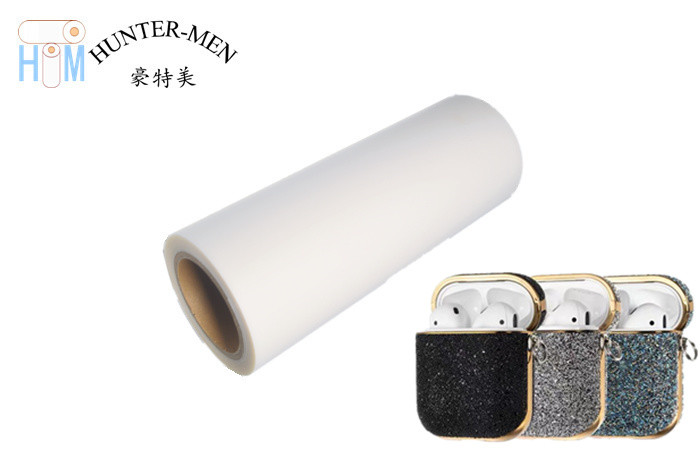

Acrylic Pressure Sensitive Hot Melt Film for Earphone Case in Room Tempareture


Model Number:HT01-4000YM



HT01-4000YM is a self-adhesive hot melt film.Double-layer film structure: one layer is hot-melt adhesive (it's haven't viscosity at room temperature, it needs to be warmed and glued), and the other layer is pressure sensitive adhesive of propylene acid (self-adhesive layer have viscosity at room temperature, release paper).Self-adhesive layer can be below 140 degrees temperature without dropping glue, without losing glue property, and can be repeatedly pasted, in line with European demand indicators.


1.2g/Cm3 Hot Melt Glue Film 100 Yard / Roll Glue Film Adhesive 0



Development direction and application of HT01-4000YM is for adhesion in embroidery patches , phone case, handcraft  and so on.

1.2g/Cm3 Hot Melt Glue Film 100 Yard / Roll Glue Film Adhesive 1


Physical Characteristics:




Color Transparent Release liner Glassine release paper
Density 1.2±0.02g/cm³ Conventional Thickness 0.28mm
Melting point 65-85 (Hunter-men) Width 6mm-1000mm
Melt Flow Index 75±15g/10min (ASTM D1238-04) Length 1000mm
Operating Temperature 93-116℃ (Hunter-men) Finished Products 1000mm*100yard
Mechanical Mold Temperature 100℃-130℃
Hot Pressing Time 3-5 seconds
Rheological temperature 0.3-0.6mpa















Remarks:The above information and technical support are based on our current knowledgeand experience.They are witout guarantee and legal claim.To obtain the best processing conditions, we suggest customers test the samples before using our products


Package & Storage:
Packaging 1PC/PE FILM, 100meters/roll, 1 rolls/CTN, or it's up on the customer's option
Storage Conditions Stored in dry unopened packaging at room temperature at least 2 years.



Support Customization Production:


We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.


1. According to the Film Performance:


Melt Point: 70-110℃,

Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),


Width: 5mm-1500mm,


Colors:All of colors


2. According to the base material:


A. Single/Double side silicone glassine release paper,

B. Single/Double side silicone kraft release paper,

C. Single/Double side silicone PE coated paper,

D. Matte / Glossy PP paper,

E. Matte / Glossy Pearlescent paper,

F. Single/Double side silicone PET release film,

G. Without base materials

H. You also can choose the base materials thickness and grammage.


3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)

A.Conventional Aperture:1.4mm,1.5mm,1.8mm

B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm

Milky Translucent 0.03mm Thickness Polyurethane Hot Melt Glue Film For Composite Leater or Textlie Fabrics 11

We can tailor hot melt film as your business and demands.


Why Choose Us:


1, more than 10 years experience in production.

2, well-known products: Sichuan Famous Brand.

3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise

4, Excellent quality and Competitive price, OEM is available.

5, Stable supply: an extensive range of stock.

6, The whole process from material to end products is under supervision.




Q1) . What is hot melt adhesive film?

A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products.

Q2).Do you accept OEM or ODM?

Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know.

Q3).How do you ship the products?

If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc.

Q4). Do you provide free sample? And how many days it will take?

Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service.

Q5). How long is the lead time?

Sample lead time: 1-3 days.

Bulk lead time: 7-20days(depends on order quantity).

Q6). How do I pay for my order?

We usually accept L/C ,T/T ,Western Union , Paypal.
