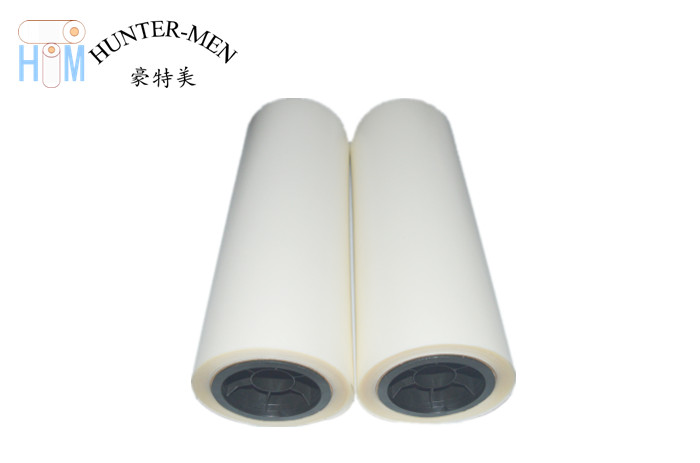

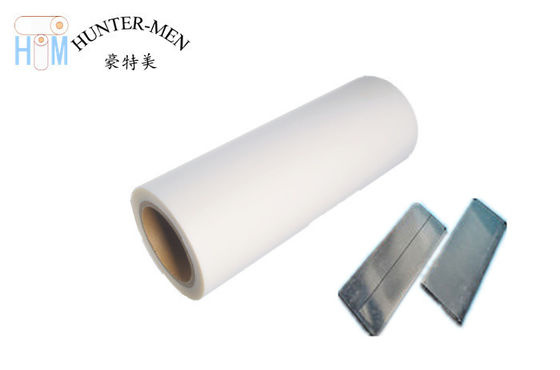

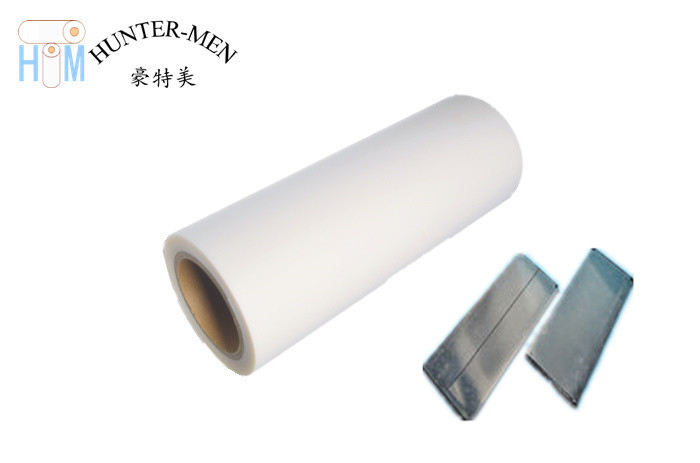

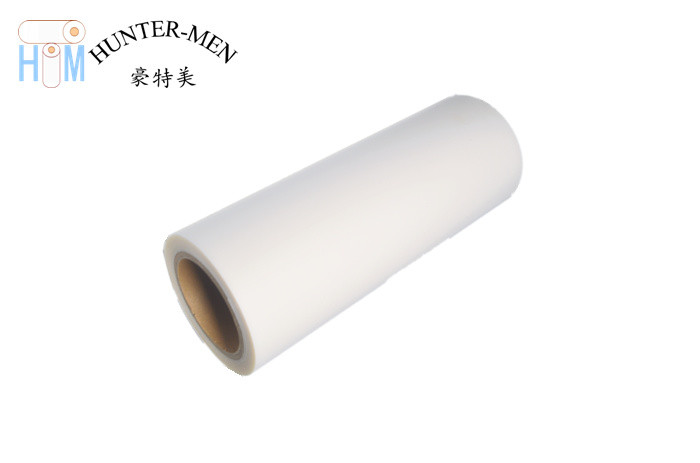

Clear Amber EVA Hot Melt Adhesive Film 96A Hardness 28g/10 Min
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | Hunter Men |
| Certification | SGS,ISO9001:2015 |
| Model Number | HT09-20 |
| Minimum Order Quantity | 100 Yard or Meters |
| Price | Negotiable |
| Packaging Details | 100 Yards/rol, 1 or 2 rolls per box, as your demands |
| Delivery Time | 1-15 work days |
| Payment Terms | Western Union, L/C, T/T, D/A, D/P,Alibaba，Paypal |
| Supply Ability | 30000yards per day |
Product Details
| Color | Amber | Melt Point | 85℃ |
|---|---|---|---|
| Operate Temperature | 140-160℃ | Thickness(mic) | 50mic,80mic,100mic,150mic |
| Width Range(mm) | 5mm-1600mm | MOQ | 100yards Or 100 Meters |
| High Light | Amber EVA Hot Melt Adhesive Film,EVA Hot Melt Adhesive Film 96A,28g/10 Min hot glue film |
||
Product Description
Resistance +70℃ -20℃ 24Hours Low and High Temperature Cyclic Test Hot Melt Adhesive Film For Plastics and Metals
Type:HT09-20
Description:
HT09-20 is thermoplastic material,it can be heat plasticized adhesive repeated. It has excellent adhesion for metals,plastics,fabrics,leathers, timbers etc and has good resilience, elasticity, heat resistance, cold resistance and water resistance.HT09-20 possesses excellent chemical additives resistant, and it can resist 24hour -20℃ to + 70℃ cyclic test.
Operate machine :iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot composite machine.
Physical Characteristics:
| Color | Amber | Release Liner | Glassine Release paper |
| Density | 1.2g/cm³ | Conventional thickness | 50mic,80mic,100mic,150mic |
| Melt Flow Index |
28g/10min |
Conventional Width | 140cm |
| Hardness (Shore A) | 96A | Length | 100yards |
| Melt Point | 85℃ | Normal Size /Rolls |
140cm(width)*100yards(Length) |
Recommended Bonding Conditions:
| First Backing Operate | Second Hot Pressure Operate | ||
| Backing Temperature | 100℃-130℃ | Hot Pressure Temperature | 140℃-160℃ |
| Hot Pressing Time | 1-5seconds | Hot Pressure Time | 5-15seconds |
| Pressure | 0.6mpa | Pressure | 0.6mpa |
Applications:
HT09-20 widely used to bonding metals,plastics,fabrics,leathers, timbers etc,mian application to precise instruments,electronics,aviations,automobiles,telecommunications,packs,bags,clothings,shoes,furnitures etc industury.
How to Use:
Hot melt adhesive film is usually processed by iron,high-frequency machine,heat roller machine,flat-bed heat press machine or other hot pressure machine.The processing structure have two layers of material, three layers of materials or more layers.
Two Layers :
Three Layers :
Packaging Details:
1PC/PE FILM, 100yard/roll, 2 rolls/CTN, or it's up on the customer's option
Delivery Detail:
Shipped in 1-15 days after payment
About Us:
|
Shenzhen CIty Hunter-Men Plastics Products CO.,LTD as a professional manufaturer was established in 2013, with rich experience specializing in R&D and producting all kinds of hot melt adhesive products. Owing varied production machines to match custom demands. Mainly Markets are Europe, America, South Asia, South Africa and so on. Our factory has passed ISO9001:2015 quality control certification system. The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film. |
|||
|
|
|
|
|
| Film Casting Machine | Film Coating Machine | Film&Tape Slitting machine | Fully Automatism Number Control Slitter | Fully Automatism Number Control Guillotine |
Support Customization Production:
We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.
1. According to the Film Performance:
Melt Point: 70-110℃,
Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),
Thickness:0.05mm-1mm,
Width: 5mm-1500mm,
Length:1M-1000M/roll,
Colors:All of colors
2.According to the base material:
A. Single/Double side silicone glassine release paper,
B. Single/Double side silicone kraft release paper,
C. Single/Double side silicone PE coated paper,
D. Matte / Glossy PP paper,
E. Matte / Glossy Pearlescent paper,
F. Single/Double side silicone PET release film,
G. Without base materials
H. You also can choose the base materials thickness and grammage.
We can tailor hot melt film as your business and demands.
Why Choose Us:
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
